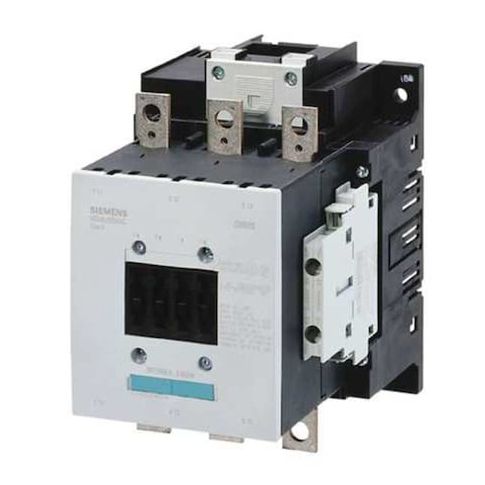

IEC Magnetic Contactor, 2NC/2NO, 110V-127V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10566AF363PA0

• The Siemens IEC Magnetic Contactor is a three-pole, non-reversing magnetic switch rated for operation within IEC standards. It is compatible with coil voltages of 110 to 127 V (AC or DC) and includes four auxiliary contacts configured as 2 NO / 2 NC. The device is an IEC-style contactor in frame size S6, with screw terminals and a Connecting Rail connection, and it does not include an embedded surge suppressor

• enclosure rating is unspecified.

  - Action: Non-Reversing

• - Poles: 3
• - Main Contacts: 3 normally open
• - Coil Voltage: 110V-127V AC/DC
• - Auxiliary Contacts: 4 total (2NO/2NC)
• - Auxiliary Contact Form: 2NC/2NO
• - Connection: Screw terminals
• Connecting Rail
• - Contactor Style: IEC
• - Frame Size: S6
• - Series: SIRIUS 3RT Safety Contactors
• - Embedded Surge Suppressor: No
• - Enclosure: No Enclosure
• - Mounting Style: Surface
• - Mounting Position: Vertical
• - Maximum Voltage Rating: 1000V AC
• - Full Load Amps: Inductive 185 A
• Resistive 215 A
• - Full Load Current: Inductive 185 A
• Resistive 215 A
• - Phase: Three
• - Mechanical Operating Durability: 10,000,000 cycles
• - Dimensions (Overall): Depth 6.69 in
• Height 6.77 in
• Width 0.47 in
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Horsepower Ratings: HP @ 1 Phase 240V: 30 hp
• HP @ 3 Phase 208V: 60 hp
• HP @ 3 Phase 240V: 75 hp
• HP @ 3 Phase 480V: 150 hp
• HP @ 3 Phase 575V: 200 hp
• - Response Time: Closing 35–75 ms
• Opening 80–90 ms
