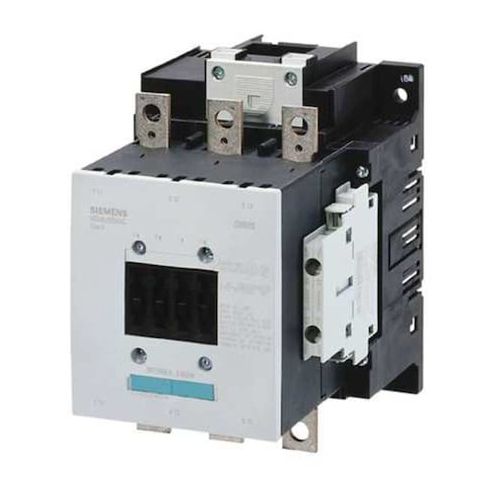

IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10566AB363PA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching solution for a wide range of applications. Suitable for surface mounting in various environments, this 3-pole, non-reversing contactor features 2NO/2NC auxiliary contacts and a coil voltage of 23-26V AC/DC. With a mechanical cycle life of 10 million cycles and ratings up to 200 HP, it's ideal for industrial control systems, motor control, and power distribution. Its compact size and screw terminals make it easy to integrate into existing systems, providing a reliable and efficient solution for applications in various industries, including manufacturing, oil and gas, and more.
Top product features:
- Switches power within specified parameters
- Has 2 normally open and 2 normally closed auxiliary contacts
- Operates at voltages up to 1000 V AC within specified conditions
Top product applications:
- Power Distribution Systems
- Industrial Control Panels
- Machine Control Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style switch rated for switching power within specified parameters. It features 2 normally open and 2 normally closed auxiliary contacts (total of 4), a coil voltage of 23–26 V (AC/DC), and it is part of the SIRIUS 3RT Safety Contactors family. The unit uses screw terminals, has no embedded surge suppressor and no enclosure, is intended for surface mounting in the specified orientation, and has a frame size/code of S6. It is rated for operation at voltages up to 1000 V AC within specified conditions and rated for operation at 50/60 Hz within the specified voltage and current ranges. It has a mechanical cycle life of approximately 10 million cycles under normal operating conditions and is suitable for environments with temperatures as low as -13 °F (note: this does not imply safety or suitability beyond this range). HP ratings vary by voltage and phase, with notable values ranging from 30 HP (single-phase 230/240 V) to 200 HP (three-phase 575 V).
- Coil Voltage: 23–26 V AC/DC
- - Action / Reversing: Non-Reversing (Reversing Capability: No)
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 4 total (2NO/2NC)
- - Frame / Series: S6
- SIRIUS 3RT Safety Contactors
- - Maximum Voltage Rating: 1000 V AC
- - Frequency / Phase: 50/60 Hz
- Three phase
- - Full Load Current: Inductive 185 A
- Resistive 215 A
- - HP Rating: 30 HP at 230/240 V single phase
- 60–200 HP across three-phase voltages
- - Mounting Style / Position: Surface
- Vertical
- - Terminal Connection: Screw
- - Enclosure: No Enclosure
- - Dimensions: Depth 6.69 in
- Height 6.77 in
- Width 4.72 in
- - Includes: Permanent Mounted Aux Contact
- Auxiliary Contacts: Yes
- - Maximum Watts: 90 kW (AC-3/AC-4)
- 121 kW (AC-1)
- - Operating Temp: -13 °F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 24 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 7.20
- Package Height: 5.10
- Package Weight: 7.50
