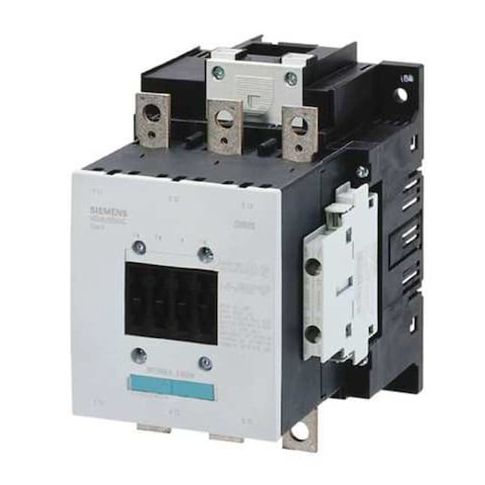

IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10566AP36

• The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within IEC standards specifications. Rated for operation with a coil voltage of 220–240 V AC/DC

• compatible with specified mounting configurations
• does not include an embedded surge suppressor or enclosure.

  - Coil voltage: 220–240 V AC/DC (see product specifications)

• - Poles and main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 4 total (2 NO / 2 NC)
• - Frame/series: SIRIUS 3RT10
• Frame Size S6
• - maximum rated voltage: 1000 V AC according to product specifications
• - Durability: mechanical durability as specified by manufacturer’s ratings
• - Phase and frequency: Three phase
• 50/60 Hz
• - Reversing: Non-Reversing
• - Mounting: Surface
• vertical mounting
• mounting holes Ø0.36 in
• hole spacing 5.12 in (height) and 3.94 in (width)
• - Terminals: Screw
• connecting rail compatible
• - Overall dimensions: Depth 6.69 in
• Height 6.77 in
• Width 4.72 in
• - HP ratings (selected examples): 30 hp at 230–240 V single phase
• 60–75 hp at various 3-phase voltages (208–480 V)
• up to 200 hp at 575–600 V 3-phase
• - Response time: 35–75 ms (closing)
• 80–90 ms (opening)
