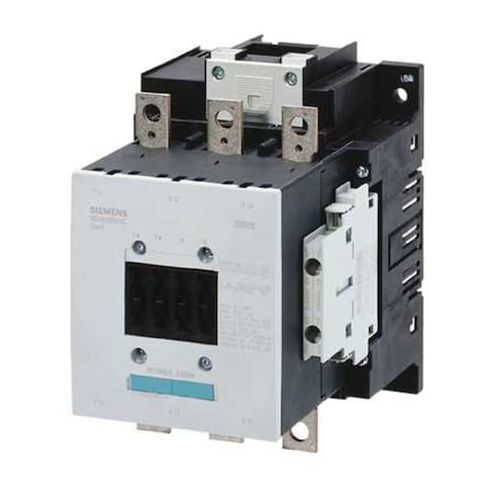

main product photo

IEC Magnetic Contactor, 2NC/2NO, 110V-127V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10566AF36

Discount: See in Cart
Free Shipping
In Stock
Brand: Siemens
Part #: 3RT10566AF36
UPC: 754554766300
SKU
510-G4319567
Regular Price $1,959.01 Special Price $1,399.29

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
IEC Magnetic Contactor, 2NC/2NO, 110V-127V AC/DC, 3 P, Non-Reversing, Screw

The Siemens IEC Magnetic Contactor is a reliable and efficient tool for controlling electrical circuits in a variety of applications. Designed for surface mounting in vertical position, this three-phase contactor features a 2NC/2NO auxiliary contact configuration and operates on a coil voltage of 110V-127V AC/DC. With a high mechanical operating durability of up to 10 million operations, this contactor is suitable for use in industrial and commercial settings, including HVAC systems, conveyor belts, and other machinery. Its fast response time and high current handling capacity make it an ideal choice for applications requiring precise control and reliability.

Top product features:

  • The product has a 2NC/2NO auxiliary contact configuration.
  • It operates on a coil voltage of 110V-127V AC/DC.
  • The device is designed for surface mounting in vertical position and connects via rail.

Top product applications:

  • General Purpose Control
  • Machine Control
  • Motor Control

The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-phase tool with an auxiliary contact configuration of 2NO/2NC. It operates on a coil voltage of 110V-127V AC/DC and has a frame size of S6. The device can handle full load amps-inductive up to 185 A and full load amps-resistive up to 215 A. This magnetic contactor is designed for surface mounting in vertical position and connects via rail. Despite not having an enclosure, it complies with REACH Art 33 and WEEE (2012/19/EU) standards.

Key features include:

  • - Horsepower compatibility is specified within the range of 30 hp at single phase -240V AC to 200 hp at three phase -600V AC.
  • - Operating wattage ranges are provided: from a minimum of 90 kW (at both 400V, AC-4 & AC-3) up to a maximum of121 kW (at 400V, AC-1).
  • - Mechanical operating durability is rated up to ten million operations.
  • - Response time ranges between: - Closing Time:35 to75 msec (at0.8 × Us min ...1.1 × Us Max) - Opening Time:80to90msec(at0.8×Usmin...1.1×UsMax)
  • - Terminal connection type is screw-based, designed for use in specified applications.
  • - Watts loss is rated at approximately13W(Current Dependent) and5.2W(Current Independent).


    • Additional Information

    • Country of Origin: DE
    • Drop Ship Item: No
    • Blind Ship Eligible: No
    • LTL Freight Required: No
    • Lead Time: Ships in 1 days
    • Minimum Order Quantity: 1
    • Unit of Measure: EA
    • Package Length: 7.10
    • Package Width: 7.60
    • Package Height: 5.00
    • Package Weight: 7.45
