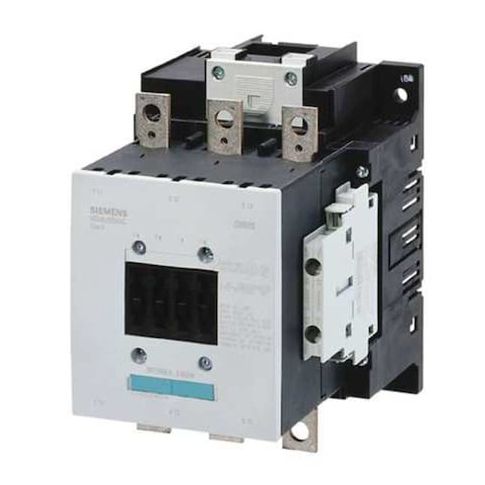

IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10566AB36
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in industrial applications. Designed for use in a variety of settings, including manufacturing, processing, and energy management, this 3-pole contactor features a non-reversing action and is rated for operation up to 1000V AC. With its compact design and screw terminals, it is easy to install and maintain, providing a cost-effective solution for applications requiring high reliability and durability. Suitable for use in 50/60 Hz environments, it is ideal for controlling motors, pumps, and other high-power devices in a range of industries.
Top product features:
- Operates with a coil voltage of 23–26 V (AC/DC) to control power circuits
- Includes four auxiliary contacts configured as 2NO/2NC for additional control and monitoring capabilities
- Has a mechanical lifespan based on standard testing procedures, ensuring reliable operation over time
Top product applications:
- Control of power circuits in industrial applications
- Use in control panels and switchgear assemblies
- Power distribution in commercial and industrial settings
The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switching device used to control power circuits. This 3-pole, non-reversing unit operates with a coil voltage of 23–26 V (AC/DC) and includes four auxiliary contacts configured as 2NO/2NC. It is part of the SIRIUS 3RT10 series (Frame S6) and uses screw terminals. Rated for operation up to 1000V AC within specified conditions, designed for surface mounting in a vertical orientation
- intended for use within specified frequency ranges. It has an expected mechanical lifespan based on standard testing procedures.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 23–26 V AC/DC
- - Auxiliary Contacts: 4 total (2NO/2NC)
- - Reversing: No
- - Series/Frame: SIRIUS 3RT10, Frame S6
- - Maximum Voltage Rating: 1000V AC within specified conditions
- - Termination: Screw
- - Mounting Style/Position: Surface, Vertical
- - Enclosure: No Enclosure
- - Frequency: 50/60 Hz
- - Mechanical Durability: It has an expected mechanical lifespan based on standard testing procedures
- - Full Load Amps: Capable of handling full load currents as specified under standard test conditions
- - HP Ratings (example voltages/phases): 30 hp @ 1P 230V
- 30 hp @ 1P 240V
- 60 hp @ 3P 208V
- 75 hp @ 3P 240V
- 150 hp @ 3P 480V
- 200 hp @ 3P 575V
- 200 hp @ 3P 600V
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 5.10
- Package Height: 7.10
- Package Weight: 7.50
