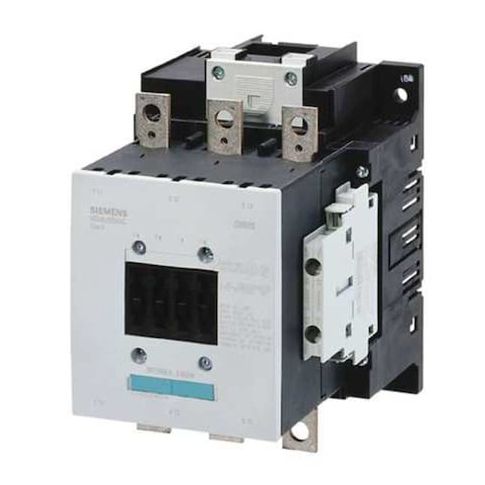

IEC Magnetic Contactor, 2NC/2NO, 110V-127V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10556AF363PA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for various industrial and commercial applications. This three-pole, non-reversing contactor is designed for use in three-phase systems and can operate within a wide range of electrical parameters, including 110-127 V AC/DC. With its IEC styling and screw terminals, it provides a secure and easy-to-use connection. The contactor's durable design and high-quality components ensure a long lifespan and reliable performance, making it suitable for applications such as motor control, lighting systems, and HVAC. Its compact size and surface mounting configuration make it an ideal choice for space-constrained installations.
Top product features:
- Non-Reversing Action
- Three-phase operation
- Two normally open and two normally closed auxiliary contacts
Top product applications:
- Industrial Control Systems
- Automotive Manufacturing Plants
- Power Generation and Distribution Facilities
The SIEMENS IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch rated for operation within specified electrical parameters. It operates with a coil voltage of 110–127 V AC/DC
- specifications are provided for compatibility purposes. The unit is part of the SIRIUS 3RT Safety Contactor series, with IEC styling, screw terminals, and a surface mounting configuration.
Key features
- - Action: Non-Reversing
- - Poles / Phase: 3, Three-phase
- - Coil Voltage: 110–127 V AC/DC
- - Auxiliary Contacts: 4 total (2NO/2NC)
- - Main Contacts: 3 normally open
- - Contactor Style / Frame Size: IEC, S6
- - Series: SIRIUS 3RT Safety Contactors
- - Electrical Connection: Screw
- - Mounting Style: Surface
- - Enclosure: No Enclosure
- - Maximum Voltage Rating: Rated for use up to 1000 V AC within the specified electrical conditions
- - Mechanical Durability: Tested for durability over an estimated number of operational cycles under standard testing conditions
- - Minimum Operating Temperature: Designed to operate within the specified temperature range (-13°F and above)
- - Dimensions (Depth/Height/Width): 6.69 in / 6.77 in / 4.72 in
- - Mounting Holes: Diameter 0.36 in
- Height distance 5.12 in
- Width distance 3.94 in
- - Includes: Permanent Mounted Aux Contact
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.20
- Package Width: 7.50
- Package Height: 5.00
- Package Weight: 7.40
