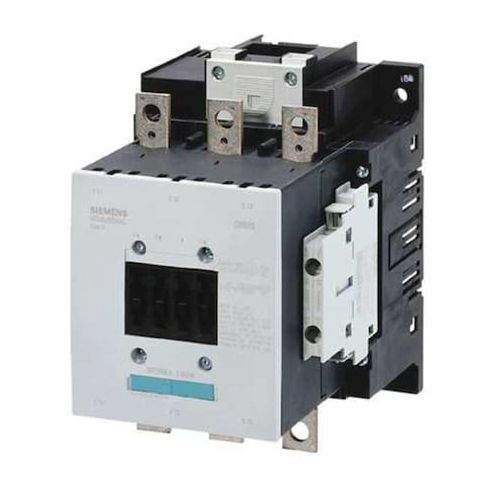

IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10556AB36
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switch designed for use in IEC-based systems. Its non-reversing operation and three-pole configuration make it ideal for a wide range of applications, including industrial automation, HVAC systems, and power distribution. With a rated coil voltage of 23V-26V AC/DC, this contactor can handle high currents and provide reliable switching performance. Its compact design and surface-mounting capabilities make it easy to integrate into existing systems, reducing installation time and increasing efficiency. Suitable for use in various industries, this contactor is a valuable addition to any electrical system.
Top product features:
- Rated coil voltage: 23V-26V AC/DC
- Three-pole, non-reversing electrical switch with 3 normally open main contacts
- Suitable for surface mounting with specified dimensions and orientation within standard installation practices
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Control Panels
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electrical switch rated for use in IEC-based systems within specified parameters. It is rated for coil voltages of 23V-26V AC/DC
- includes auxiliary contacts as specified. The device belongs to the SIRIUS 3RT10 series (frame size S6)
- compatible with surface mounting configurations.
Key features
- - Rated coil voltage: 23V-26V AC/DC
- - Poles and main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: Auxiliary contacts specifications are as listed
- actual contact configuration may vary based on model
- - Action and reversing: Designed as non-reversing operation
- - Frame/series: Series SIRIUS 3RT10
- Frame Size S6
- - Mounting: Suitable for surface mounting with specified dimensions and orientation within standard installation practices
- - Electrical ratings: Rated maximum operational voltage up to 1000 V AC at frequencies of approximately 50/60 Hz within specified conditions
- - Mechanical durability: Mechanical endurance rating based on standardized testing procedures under normal operating conditions
- - Enclosure: Does not include an enclosure component
- installation should consider appropriate protective measures per application requirements
- - Electrical connections: Terminals: Screw
- Electrical connection: Connecting Rail
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Power and current: Full Load Amps – Inductive 150 A
- Resistive 185 A
- - Horsepower ratings (examples): HP @ 240V single phase 30 hp
- HP @ 3 Phase – 208V 50 hp
- 240V 60 hp
- 480V 125 hp
- 575V 150 hp
- - Watt losses: 9W (current dependent)
- 5.2W (current independent)
- - Overall dimensions: Overall dimensions are provided for reference only and do not imply suitability beyond typical installation parameters unless verified by qualified personnel.
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 7.20
- Package Height: 5.10
- Package Weight: 7.45
