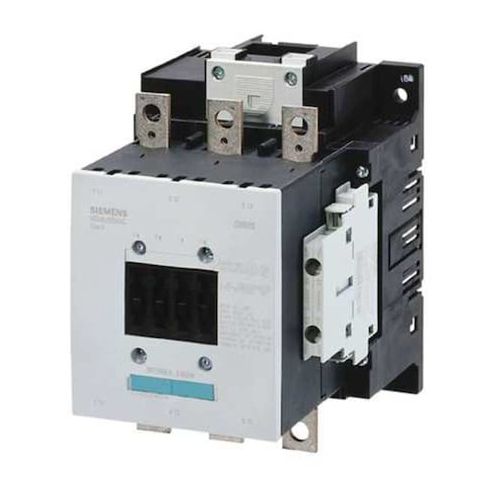

IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10546AP36
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling loads in various industrial applications. Designed for surface mounting in IEC-style control panels, this 3-pole contactor operates within a 220-240V AC/DC voltage range and features non-reversing action. With 2 normally open and 2 normally closed auxiliary contacts, it provides flexible control options for motors, lighting, and other loads. Its compact design and screw terminals make it easy to integrate into existing systems. Ideal for use in manufacturing, automation, and process control, this contactor offers reliable and efficient control, minimizing downtime and increasing productivity.
Top product features:
- Operates with a coil voltage of 220–240 V AC/DC
- Features non-reversing action
- Includes 2 normally open and 2 normally closed auxiliary contacts (2NO/2NC)
Top product applications:
- Motor control in industrial automation systems
- Lighting control in commercial and industrial settings
- Control of pumps and other loads in water treatment and other applications
Siemens IEC Magnetic Contactor (Series SIRIUS 3RT10, Frame Size S6) is a 3-pole, electrically operated switch that uses an electromagnetic coil rated for operation within specified voltage ranges, intended for controlling loads such as motors and lighting. It operates with a coil voltage of 220–240 V AC/DC and features non-reversing action. The device includes 2 normally open and 2 normally closed auxiliary contacts (2NO/2NC) and uses screw terminals for connections. This unit is designed for surface mounting in IEC-style control panels and does not include built-in surge suppression or enclosure features.
Key features
- - Action type: Non-reversing
- Reversing capability: Not included
- - Coil and contacts: Coil voltage 220–240 V AC/DC
- Aux contacts 4 total (2NO/2NC)
- Main contacts: 3 normally open
- - Series and frame: Series SIRIUS 3RT10
- Frame Size S6
- - Mounting and connections: Mounting Style Surface
- Terminal Connection: Screw
- Electrical connection: Connecting Rail
- Mounting hole diameter 0.36 in
- Height 5.12 in, Width 3.94 in
- - Enclosure and standards: Enclosure No Enclosure
- NEMA rating No Enclosure
- Standards REACH Art 33, WEEE (2012/19/EU)
- - Electrical ratings: Electrical ratings are based on standard testing conditions within specified parameters
- - Frequency and dims: Hz 50/60
- Height 6.77 in
- Depth 6.69 in
- Width 4.72 in
- - Additional: Includes auxiliary contacts Yes (4 total)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 5.10
- Package Height: 7.10
- Package Weight: 7.25
