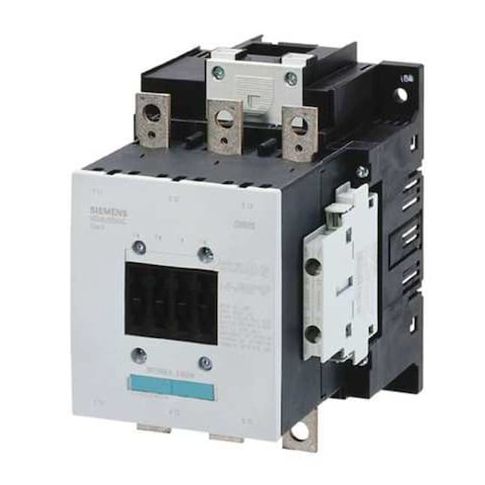

IEC Magnetic Contactor, 2NC/2NO, 23V-26V AC/DC, 3 P, Non-Reversing, Screw MPN:3RT10546AB36
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling and protecting electrical circuits. Suitable for a wide range of applications, including industrial automation, power distribution, and HVAC systems, this 3-pole contactor provides secure and reliable operation within the specified voltage ranges. With a mechanical durability of 10,000,000 cycles, it ensures long-lasting performance and minimizes downtime. Its compact design and surface-mounting capability make it easy to integrate into existing systems, while its screw terminals and non-reversing action simplify installation and reduce the risk of errors. Ideal for use in harsh environments, this contactor delivers peace of mind and optimal system performance.
Top product features:
- The Siemens IEC Magnetic Contactor is a non-reversing device.
- It energizes a 23–26 V coil (AC/DC) to operate the main circuit.
- It includes four auxiliary contacts configured as 2NO/2NC.
Top product applications:
- Industrial Control Systems
- Automotive Manufacturing Equipment
- Power Generation and Distribution Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device from the SIRIUS 3RT10 family (frame size S6) that energizes a 23–26 V coil (AC/DC to operate the main circuit). It includes four auxiliary contacts configured as 2NO/2NC and uses screw terminals for wiring. This surface-mounted unit is suitable for surface mounting in vertical orientation and is rated for operation within the specified voltage ranges, with a mechanical durability specification of 10,000,000 cycles.
Key features:
- - Action: Non-Reversing
- - Poles / Main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 4 total (2NO/2NC)
- Includes auxiliary contacts
- - Coil voltage: 23–26 V AC/DC
- - Contactor style/series/frame: IEC
- Series SIRIUS 3RT10
- Frame size S6
- - Electrical ratings: Max voltage 1000 V AC
- Full Load Amps Inductive 115 A
- Resistive 160 A
- - Phase / frequency: Three-phase
- 50/60 Hz
- - Mounting: Surface mounting
- Vertical orientation
- Hole Ø 0.36 in
- Height spacing 5.12 in
- Width spacing 3.94 in
- - Terminal connections: Screw
- - Enclosure: No enclosure
- - Durability: 10,000,000 mechanical cycles
- - Dimensions (approx.): Depth 6.69 in
- Height 6.77 in
- Width 4.72 in
- - Reversing: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 4.70
- Package Height: 6.90
- Package Weight: 6.70
