Reversing IEC Magnetic Motor Starter, No Enclosure NEMA Rating, 24V AC/DC, 3 Poles, 2NO MPN:3RA6250-1DB32
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4293877
Reversing IEC Magnetic Motor Starter, No Enclosure NEMA Rating, 24V AC/DC, 3 Poles, 2NO

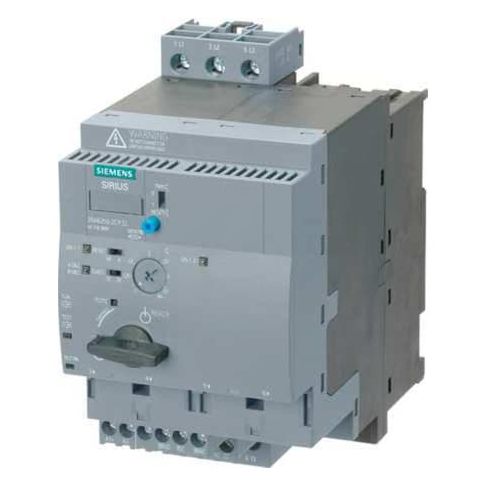

The Siemens IEC Magnetic Motor Starter is a versatile and reliable solution for controlling and protecting three-phase motors. Ideal for use in a variety of applications, including manufacturing, material handling, and HVAC systems, this starter provides reversing capability, electronic overload protection, and auxiliary contact functionality. Its compact design and DIN rail mounting style make it easy to integrate into existing control systems. With a maximum voltage rating of 690V AC and a horsepower rating of up to 10 HP, this starter is suitable for a wide range of motor sizes and applications, providing efficient and safe motor control.
Top product features:
- Reversing capability allows the motor to change direction.
- Electronic overload protection provides automatic shutdown in case of excessive current.
- Two auxiliary contacts provide additional control and monitoring functions.
Top product applications:
- Motor Control Systems
- Industrial Automation
- High-Power Applications
IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 12 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 3 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 2, Mounting Style DIN Rail, Auxiliary Contact Form 2NO, Starter Style IEC, Reversing Capability Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 24V AC/DC, Horsepower @ Three Phase - 600V AC 10 hp, Horsepower @ Three Phase - 240V AC 3 hp
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.20
- Package Width: 9.00
- Package Height: 4.50
- Package Weight: 5.65
Product info last updated on February 10, 2026 4:15pm UTC
Category: Industrial Electrical Controls and Automation
