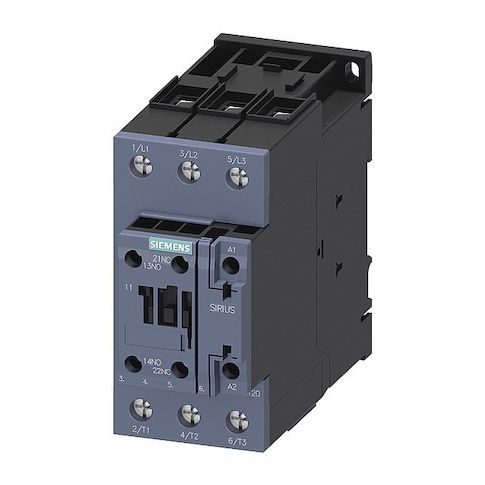

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20381AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in industrial control panels. Designed for use with 110-120V AC, this 3-pole non-reversing contactor features two auxiliary contacts and screw terminals, making it easy to integrate into a wide range of applications. Its robust construction ensures a long lifespan, withstanding 10 million cycles of operation. Suitable for use in various industries, this contactor is ideal for controlling motors, pumps, and other industrial loads, providing a safe and reliable means of switching power on and off. Its compact design makes it perfect for DIN rail and surface mounting.
Top product features:
- Switches power circuits in IEC-standard control panels for industrial loads.
- Features two auxiliary contacts (1NO/1NC) for additional control and monitoring.
- Can withstand 10,000,000 cycles of mechanical durability for reliable operation.
Top product applications:
- Industrial Control Panels
- Power distribution and control in IEC-standard industrial control panels
- Switching power circuits in industrial loads
Siemens IEC Magnetic Contactor, 3-pole, non-reversing, coil voltage 110-120 V AC. Designed for switching power circuits in IEC-standard control panels for industrial loads. It features two auxiliary contacts (1NO/1NC) and screw terminals, and is part of the SIRIUS 3RT20 series (Frame S2).
- Poles: 3
- - Coil Voltage: 110–120 V AC
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Reversing: Non-Reversing
- - Electrical Connection: Screws
- - Frame Size / Series: S2 / SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - IP Rating: IP20
- - Enclosure: N/A
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 65 A
- Resistive 90 A
- - Mechanical Durability: 10,000,000 cycles
- - Dimensions: 2.55 in W x 5.7 in H x 5.5 in D
- - Standards: REACH Art 33, WEEE
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 4.90
- Package Height: 2.50
- Package Weight: 2.18
