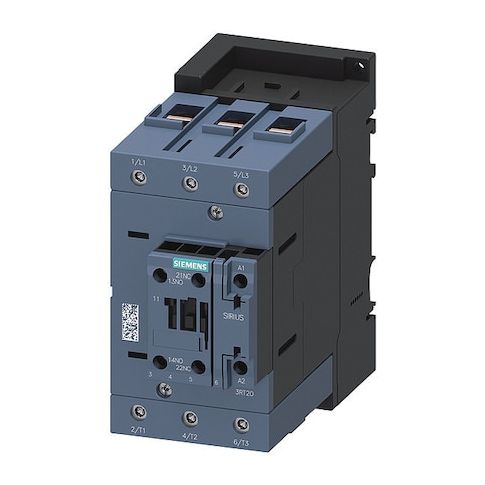

IEC Magnetic Contactor, 1NC/1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20461AK60
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device suitable for a wide range of industrial applications. Its 3-pole, non-reversing design makes it ideal for use in control circuits, while its compatibility with 110-120V AC coils ensures seamless integration with existing systems. With a high mechanical durability of 10 million cycles, this contactor can withstand the demands of heavy-duty industrial use. Its compact size and screw terminal connections make it easy to install and integrate into new or existing systems, making it a versatile solution for various industries, including manufacturing, automation, and power distribution.
Top product features:
- The product has 3 normally open main contacts.
- The product has 1 normally closed auxiliary contact.
- The product is rated for operation up to 1000 V AC within specified conditions.
Top product applications:
- Industrial Control Panels
- Industrial control panels can utilize the IEC Magnetic Contactor to control and switch electrical loads in various industrial applications.
- Motor Control Systems
The IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for operation within the specified voltage ranges and compliant with IEC standards.
- Coil voltage: 110–120 V AC (compatible with coils rated for 110–120 V AC)
- - Poles / main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 2 total (1 NO, 1 NC)
- - Electrical connection: Screw terminals
- - Series/Frame: SIRIUS 3RT20
- Frame size S3
- - Frequency: 50/60 Hz
- - Rated for operation up to 1000 V AC within specified conditions
- - Full load amps: 96 A (inductive)
- 130 A (resistive) under specified conditions
- - Power ratings: Power ratings are based on standard testing conditions and do not imply suitability beyond those parameters
- - Watts loss: 6.6 W (current dependent)
- 22 W (current independent)
- - Mechanical durability: 10,000,000 cycles
- - Dimensions: Height 6.75 in
- Width 3.15 in
- Depth 6.4 in
- - Mounting: Can be mounted on DIN Rail or surface as specified
- Vertical mounting
- - Standards: REACH Art 33, WEEE
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 6.40
- Package Height: 3.20
- Package Weight: 3.75
