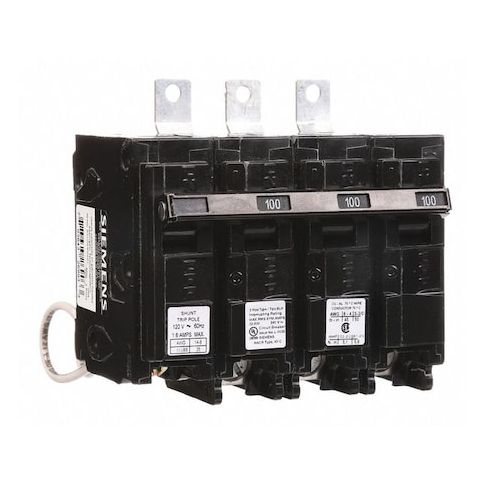

Miniature Circuit Breaker, BL Series, 100A, 3 Pole, 120/240V AC, 22kA at 240V AC MPN:B3100H00S01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3065255
Miniature Circuit Breaker, BL Series, 100A, 3 Pole, 120/240V AC, 22kA at 240V AC
Protect your Siemens P1 panelboards with the reliable BL Series 100A 3-Pole Miniature Circuit Breaker. This compact device offers shunt trip functionality, ensuring safe and efficient operation. With a maximum AIR rating of 22kA at 240V AC, it provides exceptional protection against electrical surges. Suitable for a wide range of applications, including commercial and industrial settings, this circuit breaker is designed for use with 120/240V AC systems. Its bolt-on mounting style and lug terminal connections make installation easy. Upgrade your panelboard with this high-quality circuit breaker for added safety and peace of mind.
Top product features:
- Shunt trip circuit breaker design allows for remote control and automatic tripping in case of an overload or short circuit
- 3-pole design provides simultaneous protection for three phases of an electrical circuit
- 22kA maximum air rating at 240V AC provides high fault current interrupting capability
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Residential electrical panelboards
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Three, Series BL, Max. AIR Rating 22kA at 240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BLH, Length 3.8 in, Width 4.5 in, Depth 5.6 in, Min. Wire Size 2 AWG (Al), 4 AWG (Cu)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.40
- Package Height: 3.80
- Package Weight: 1.53
Product info last updated on March 8, 2026 6:01pm UTC
Category: Circuit Protection
