Push Button Operator, 30 mm, 1NO/1NC, Amber MPN:52BP2J9AB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2983255

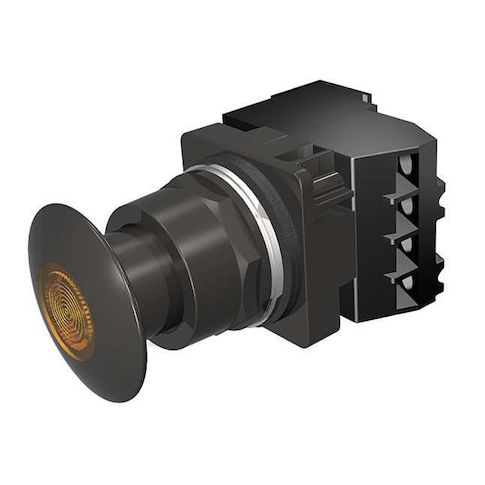

Push Button Operator, 30 mm, 1NO/1NC, Amber
The Siemens 30mm Push Button Operator with maintained action is a versatile and reliable solution for a variety of applications. Its 44mm mushroom head design provides a clear and intuitive user interface, while its 1NO/1NC contact form ensures smooth and efficient operation. Suitable for use in harsh environments, this operator meets NEMA and IP ratings for dust and water resistance. Ideal for use in industrial control panels, machines, and equipment, this push button operator is also compliant with CSA, REACH, and UL standards, making it a trusted choice for applications in the US and beyond.
Top product features:
- Mushroom Head Type of Operator provides a clear and easy-to-press design
- Maintained Action allows the operator to remain in the activated state until manually released
- 1NO/1NC contact form provides a single normally open and single normally closed contact, enabling a variety of circuit configurations
Top product applications:
- Industrial Control Panels
- Factory Automation Systems
- Power Distribution Panels
Mushroom Head Push Button, 30 mm, Maintained Action, 44mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Black Epoxy Coated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.19
- Package Width: 2.94
- Package Height: 4.88
- Package Weight: 0.50
Product info last updated on January 13, 2026 1:27pm UTC
Category: Industrial Electrical Controls and Automation
