Miniature Circuit Breaker, BL Series, 60A, 3 Pole, 120/240V AC, 65kA at 240V AC MPN:B360HH00S01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2850407

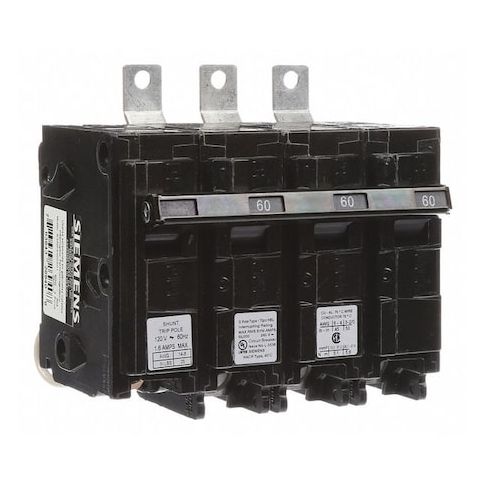

Miniature Circuit Breaker, BL Series, 60A, 3 Pole, 120/240V AC, 65kA at 240V AC
Protect your electrical system with the Siemens BL Series 60A 3-Pole Miniature Circuit Breaker. Designed for use in P1 panelboards, this breaker provides reliable and efficient protection against overloads and short circuits. With a maximum air rating of 65kA at 240V AC, it meets the demands of high-power applications. Its compact size and bolt-on mounting style make it easy to install, while its shunt trip mechanism ensures safe and controlled shutdowns. Ideal for use in commercial and industrial settings, this circuit breaker is a reliable choice for applications where high power and reliability are essential.
Top product features:
- Trip-free mechanism to prevent accidental tripping
- Three-pole design for three-phase applications
- 65kA short-circuit current rating for high fault protection
Top product applications:
- Main Electrical Panel
- Home Electrical Distribution
- Commercial Electrical Distribution
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Three, Series BL, Max. AIR Rating 65kA at 240V AC, For Use With P1 Panelboards, Terminal Connection Lug, Frame Size 125A/HBL, Length 3 in, Width 4 in, Depth 4 in, Min. Wire Size 8 AWG, Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.30
- Package Height: 3.70
- Package Weight: 1.55
Product info last updated on January 13, 2026 1:45pm UTC
Category: Circuit Protection
