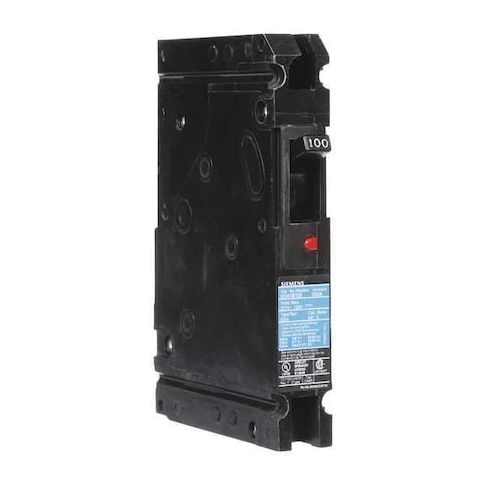

Molded Case Circuit Breaker, ED4 Series, 100A, 1 Pole, 120/277V AC, 22kA at 277V AC MPN:ED41B100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2585147
Molded Case Circuit Breaker, ED4 Series, 100A, 1 Pole, 120/277V AC, 22kA at 277V AC
The Siemens ED4 Series 100A Molded Case Circuit Breaker is a reliable and efficient solution for protecting electrical circuits in various applications. Suitable for use with SB Switchboards and Sentron Panelboards, this circuit breaker provides high amp trip settings and low amp trip settings for optimal performance. Its thermal magnetic trip type and instantaneous trip fixed design ensure fast and accurate protection against overloads and short circuits. Ideal for use in single-phase applications, this circuit breaker is a valuable addition to any electrical system, providing peace of mind and protecting against costly electrical failures.
Top product features:
- 1 Pole circuit breaker design allows for single phase protection and control.
- Thermal magnetic trip type provides both heat and magnetic sensing for accurate overload detection.
- Instantaneous trip fixed feature enables rapid shutdown in case of a short circuit.
Top product applications:
- Panelboards
- Switchboards
- Industrial electrical systems
Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 120/277V AC, Max. AIR Rating 22kA at 277V AC, For Use With SB Switchboards, Sentron Panelboards, Series ED4, High Amp Trip Setting 100 A, Low Amp Trip Setting 100 A, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 125V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Any, Frame Size 125A/ED, Circuit Breaker Mounting Style Lug In Panelboard
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 1.00
- Package Height: 5.00
- Package Weight: 1.30
Product info last updated on January 13, 2026 11:57am UTC
Category: Circuit Protection
