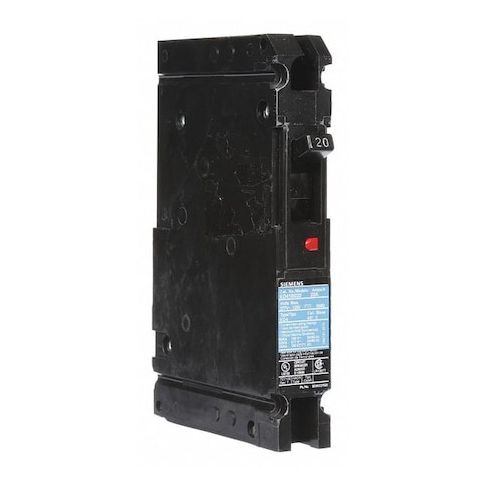

Molded Case Circuit Breaker, ED4 Series, 20A, 1 Pole, 120/277V AC, 22kA at 277V AC MPN:ED41B020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2521705
Molded Case Circuit Breaker, ED4 Series, 20A, 1 Pole, 120/277V AC, 22kA at 277V AC
Protect your electrical system with the Siemens ED4 Series Molded Case Circuit Breaker, designed for use with SB Switchboards and Sentron Panelboards. This reliable circuit breaker provides 20A of current protection and meets AC voltage ratings of 120/277V AC, with a maximum air rating of 22kA at 277V AC. Its thermal magnetic trip type ensures quick response to faults, and its single-phase connection makes it suitable for a wide range of applications. Ideal for commercial and industrial settings, this circuit breaker offers high amp trip settings and low amp trip settings, providing flexibility and peace of mind.
Top product features:
- 20A Amps for high amp trip setting
- Thermal magnetic trip type for reliable circuit protection
- Lug in panelboard mounting style for easy installation
Top product applications:
- Main Distribution Panel
- SB Switchboards
- Sentron Panelboards
Molded Case Circuit Breaker, 20 A Amps, AC Voltage Rating 120/277V AC, Max. AIR Rating 22kA at 277V AC, For Use With SB Switchboards, Sentron Panelboards, Series ED4, High Amp Trip Setting 20 A, Low Amp Trip Setting 20 A, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 125V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Any, Frame Size 125A/ED, Circuit Breaker Mounting Style Lug In Panelboard
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 4.50
- Package Height: 1.00
- Package Weight: 1.15
Product info last updated on January 13, 2026 11:50am UTC
Category: Circuit Protection
