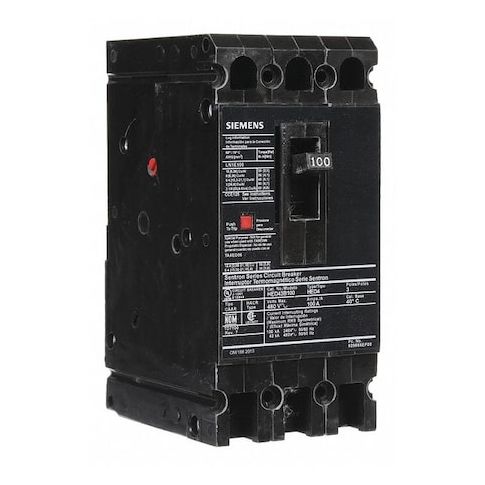

Molded Case Circuit Breaker, HED4 Series, 100A, 3 Pole, 480V AC, 42kA at 480V AC MPN:HED43B100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2256782
Molded Case Circuit Breaker, HED4 Series, 100A, 3 Pole, 480V AC, 42kA at 480V AC
Protect your high-voltage electrical systems with the Siemens HED4 Series Molded Case Circuit Breaker. Rated for 100A and 480V AC, this 3-pole circuit breaker is designed for use with SB switchboards and Sentron panelboards. Its high interrupting capacity and thermal magnetic trip type ensure reliable and safe operation. Ideal for applications in industrial and commercial settings, this circuit breaker is suitable for use in a variety of environments, including manufacturing facilities, data centers, and office buildings. With its compact design and high-performance capabilities, the HED4 Series circuit breaker is a reliable choice for protecting your electrical systems.
Top product features:
- Molded case circuit breaker design allows for high interrupting capacity
- Three-pole design enables phase three protection
- Thermal magnetic trip type provides instantaneous trip functionality
Top product applications:
- Industrial Power Distribution Systems
- Commercial Buildings and Facilities
- High-Amp Industrial Settings
Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 42kA at 480V AC, For Use With SB Switchboards, Sentron Panelboards, Series HED4, High Amp Trip Setting 100 A, Low Amp Trip Setting 100 A, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/ED
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 4.30
- Package Height: 6.10
- Package Weight: 3.62
Product info last updated on January 13, 2026 12:52pm UTC
Category: Circuit Protection
