Miniature Circuit Breaker, BQ Series, 20A, 3 Pole, 240V AC, 10kA at 240V AC MPN:BQ3B02000S01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2240086

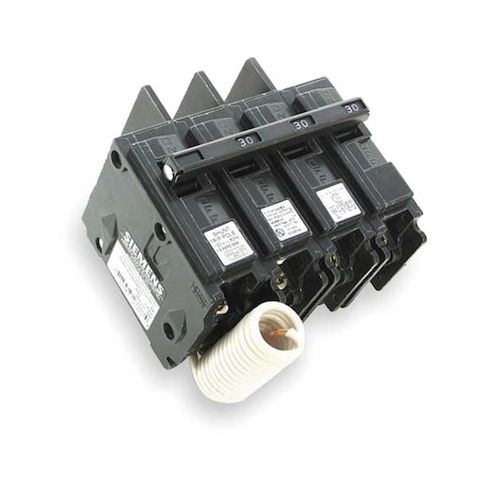

Miniature Circuit Breaker, BQ Series, 20A, 3 Pole, 240V AC, 10kA at 240V AC
Protect your electrical systems with the Siemens BQ Series 20A 3-Pole Miniature Circuit Breaker, designed for use with Siemens panelboards. This reliable circuit breaker offers shunt trip functionality and a maximum air rating of 10kA at 240V AC, ensuring safe and efficient operation. Ideal for a variety of applications, including residential and commercial buildings, the BQ Series breaker provides peace of mind with its 20A rating and 240V AC voltage rating. With its compact design and easy bolt-on mounting style, this circuit breaker is a convenient and effective solution for electrical system protection.
Top product features:
- Trip circuit protection for 20A loads
- Shut-off of power to a circuit in the event of an overload or short circuit
- Three-pole design for phase protection
Top product applications:
- Commercial Building Electrical Systems
- Industrial Machinery and Equipment Protection
- Home Electrical Panel Upgrades
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Three, Series BQ, Max. AIR Rating 10kA at 240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 4 in, Width 4 in, Depth 6 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 10 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.20
- Package Height: 3.70
- Package Weight: 1.55
Product info last updated on January 13, 2026 12:50pm UTC
Category: Circuit Protection
