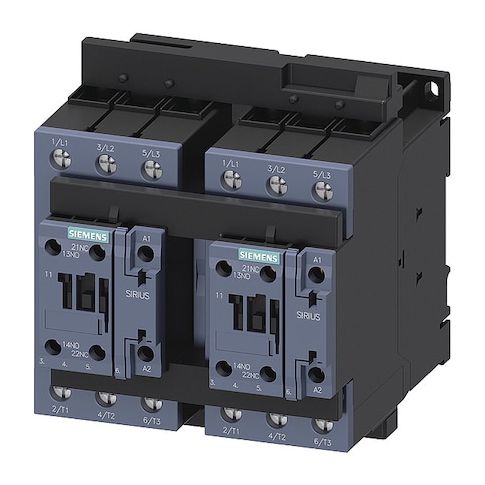

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Reversing, Screw MPN:3RA23378XB301AK6
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. Suitable for use in control panels, this 3-pole, reversing contactor operates with a 110–120 V AC coil and features screw-terminal connections. Its compact design and modular installation make it ideal for industrial and commercial settings. The device's 2NO/2NC auxiliary contacts provide additional functionality, while its IP20 rating ensures protection against solid particles. With a durability of mechanical cycles and operating temperature range as per specifications, this contactor is perfect for applications in manufacturing, automation, and power distribution.
Top product features:
- The Siemens IEC Magnetic Contactor has 3 total auxiliary contacts configured as 2NO/2NC.
- The device features reversing capability as specified by manufacturer documentation.
- The product has screw-terminal connections for easy installation and maintenance.
Top product applications:
- Industrial Automation
- Control Panels
- Machine Tools
The Siemens IEC Magnetic Contactor is a 3-pole, reversing, electrically operated switch rated for operation within IEC standards. It operates with a 110–120 V AC coil within specified parameters to open and close its main contacts and includes auxiliary contacts configured as 2NO/2NC. The device features screw-terminal connections and is part of the SIRIUS 3RA23 series with frame size S2, suitable for compact, modular installation in control panels.
- Auxiliary contacts: 3 total, configuration 2NO/2NC
- - Coil voltage and frequency: 110–120 V AC
- 50/60 Hz
- - Reversing capability: as specified by manufacturer documentation
- - Main contacts: 3 normally open
- 0 normally closed
- - Poles and ratings: 3 poles
- rated for use up to 690 V AC under specified conditions
- IP20
- - Durability and temperature: durability of mechanical cycles and operating temperature range as per specifications
- - Dimensions and mounting: Width 4.72 in
- Overall width 10.4 in
- Overall height 9.15 in
- Overall depth 13.1 in
- Depth 5.12 in
- compatible mounting styles including DIN rail or surface mounting as recommended by manufacturer
- - Terminals and enclosure: Terminal connection type Screw
- Enclosure No Enclosure
- NEMA Enclosure Rating No Enclosure
- - Series and standards: Series SIRIUS 3RA23
- Standards REACH Art 33, WEEE (2012/19/EU)
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.91
- Package Width: 9.80
- Package Height: 9.33
- Package Weight: 4.62
