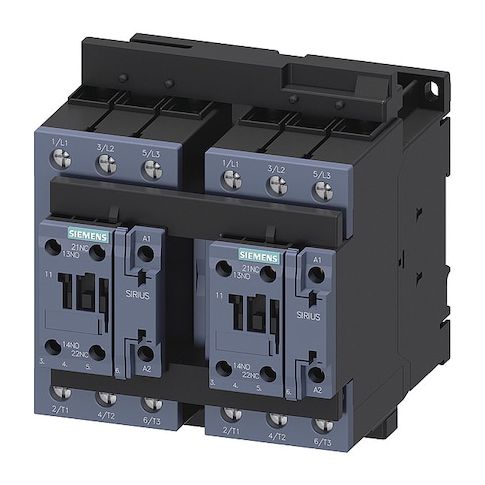

IEC Magnetic Contactor, 2NC/2NO, 20V-33V AC/DC, 3 P, Reversing, Screw MPN:3RA23378XB301NB3
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for use in various industrial applications. With its 3-pole, reversing configuration, it allows for smooth operation and control of motors and other electrical loads. The contactor's 20-33 V AC/DC coil voltage rating and screw-terminal connections make it easy to integrate into existing systems. Suitable for use in temperatures up to 60°C, this contactor is ideal for use in manufacturing, HVAC, and other industries where high reliability and efficiency are required. Its compact design and DIN rail or surface mounting options make it a versatile choice for a range of applications.
Top product features:
- It is a three-pole, reversing contactor.
- It is equipped with auxiliary contacts as specified.
- It uses screw-terminal connections.
Top product applications:
- HVAC Systems
- Motor Control Centers
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It is a three-pole, reversing contactor rated for coil voltages of 20-33 V AC/DC within specified parameters. It is equipped with auxiliary contacts as specified and uses screw-terminal connections, part of the SIRIUS 3RA23 series, frame size S2.
Key features
- - Coil Voltage: 20-33 V AC/DC within specified parameters
- - Poles: 3
- - Reversing: Yes
- - Auxiliary Contacts: 2NC/2NO
- - Terminal Connection Type: Screw
- - Frame Size: S2
- - Series: SIRIUS 3RA23
- - Mounting Style: DIN Rail, Surface
- - Mounting Position: Vertical
- - IP Rating: IP20
- - Enclosure: No Enclosure
- - Maximum Voltage Rating: rated for use up to a maximum voltage of 690V AC within applicable limits
- - Frequency: 50/60 Hz
- - Phase: Three
- - Full Load Amps: rated for full load currents of up to inductive 65 A and resistive 80 A under specified conditions
- - Maximum Operating Temperature: suitable for operation at temperatures up to approximately 60°C (140°F) within manufacturer specifications
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Dimensions (approx.): Depth 5.12 in
- Width 4.72 in
- Height 5.55 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.88
- Package Width: 9.80
- Package Height: 9.21
- Package Weight: 5.26
