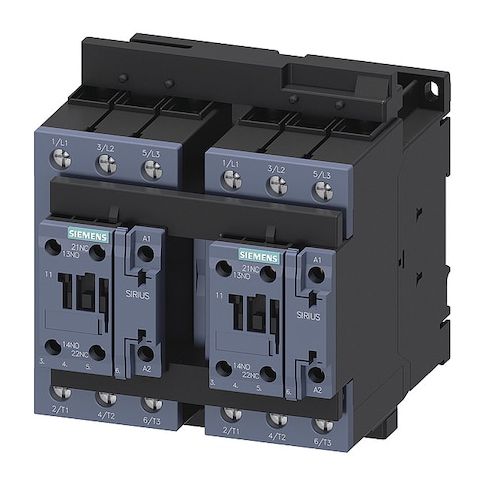

IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23368XB301AP6
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and versatile switching solution for a wide range of applications. Suitable for use in industrial and commercial settings, this 3-pole reversing contactor is designed to control AC circuits with a voltage range of 220-240V. Its 2NO/2NC auxiliary contacts provide additional control and monitoring capabilities. With a high mechanical durability of 10,000,000 cycles and an operating temperature range of -13°F to 140°F, this contactor is built to withstand harsh environments. Its compact design makes it easy to mount on DIN rails or surfaces, making it an ideal choice for applications where space is limited.
Top product features:
- The product has 2NO/2NC auxiliary contacts for additional control and monitoring capabilities.
- It is a 3-pole reversing magnetic switch that allows for bidirectional control.
- It has a screw terminal connection type for easy and secure wiring.
Top product applications:
- Power Distribution Systems
- Motor Control Circuits
- Control Panel Systems
The Siemens IEC Magnetic Contactor is a 3-pole reversing IEC-type magnetic switch. It uses a 220–240 V AC coil to control its contacts and includes 2NO/2NC auxiliary contacts. The unit belongs to the SIRIUS 3RA23 family (Frame Size: S2) with screw terminals
- it supports mounting on DIN rails or surfaces in a vertical orientation. It is designed for use within its specified voltage and frequency ranges, with an IP20 rating and no enclosure.
- Coil Voltage: 220–240 V AC
- - Poles: 3
- - Reversing: Yes
- - Auxiliary Contacts: 2NO/2NC (Includes Auxiliary Contacts: Yes)
- - Frame/Series: S2 / SIRIUS 3RA23
- - Mounting: DIN Rail, Surface
- Mounting Position: Vertical
- - Terminal Connection Type: Screw
- - Maximum Voltage Rating: 690 V AC
- - Frequency: 50/60 Hz
- - IP Rating / Enclosure: IP20, No Enclosure
- - Dimensions: Depth 5.12 in
- Height 5.55 in
- Width 4.72 in
- - Ambient Temperature: -13°F to 140°F
- - Mechanical Durability: 10,000,000 cycles
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Phase: Three
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.88
- Package Width: 10.08
- Package Height: 9.33
- Package Weight: 5.56
