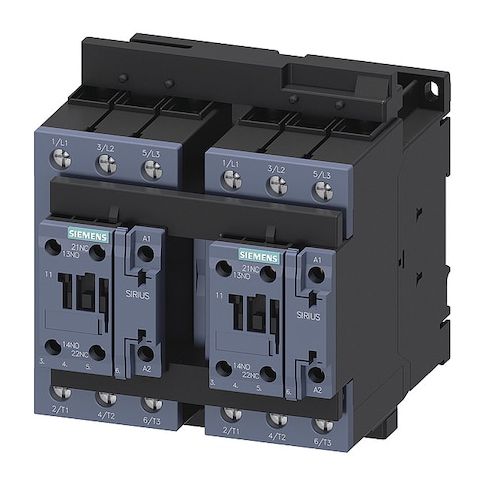

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Reversing, Screw MPN:3RA23388XB301AK6

• Siemens IEC Magnetic Contactor, 3-pole reversing, is a magnetic switching device intended for controlling power circuits in accordance with IEC standards. It operates from a 110–120 V AC coil and uses three main normally open contacts to switch loads, with auxiliary contacts configured as 2NO/2NC. The unit compatible with screw terminal connections and can be mounted on DIN Rail or surfaces in a vertical orientation. It is part of the SIRIUS 3RA23 series (frame size S2) and is rated for operation within the specified voltage range of up to 690 V AC with an IP20 protection class and has an open design without an enclosure.

  Key features

• - Auxiliary and main contact configurations are as specified
• actual contact arrangements should be verified based on application requirements.
• - Electrical specifications include operation at frequencies of 50/60 Hz, three-phase configuration, coil voltages of approximately 110–120 V AC, and maximum voltage ratings up to 690 V AC within the product's rated parameters.
• - Physical characteristics include frame size S2, series SIRIUS 3RA23, suitable for DIN Rail or surface mounting in a vertical orientation, with screw terminal connections as specified.
• - Environmental ratings include IP20 protection class with operational temperature ranges from -13°F to approximately +140°F (depending on ambient conditions). Mechanical durability indicates expected cycle life under normal use conditions but does not guarantee performance over all cycles or environments beyond specified testing parameters.
• - Standards compliance information provided does not imply specific safety guarantees beyond compliance statements.
