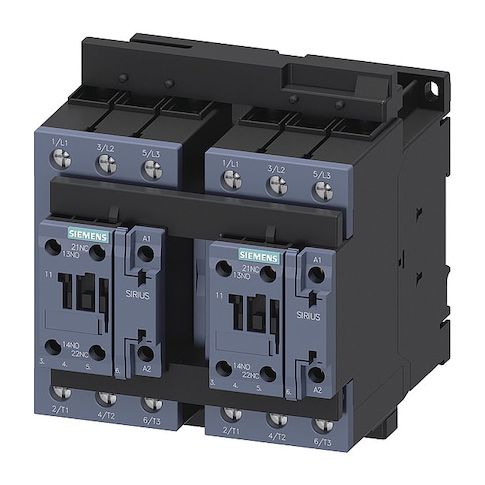

IEC Magnetic Contactor, 2NC/2NO, 20V-33V AC/DC, 3 P, Reversing, Screw MPN:3RA23358XB301NB3
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device for control of power circuits in IEC-standard control systems. Its 2NC/2NO configuration allows for precise control and monitoring of electrical circuits, making it ideal for applications in industrial automation, HVAC, and power distribution. With a coil voltage range of 20-33V AC/DC and a maximum voltage of 690V AC, this contactor is suitable for a wide range of applications, including motor control, lighting systems, and power supply management. Its compact design and easy mounting options make it a convenient choice for engineers and technicians.
Top product features:
- The Siemens IEC Magnetic Contactor has 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
- It has a reversing capability.
- It supports DIN Rail and surface mounting with screw terminals.
Top product applications:
- Industrial Control Systems
- Power Distribution Panels
- Machine Automation and Control
The Siemens IEC Magnetic Contactor is a three-pole reversing switching device intended for control of power circuits in IEC-standard control systems. It uses a coil rated 20–33 V (AC/DC) to operate its main contacts and auxiliary contacts: 2 NO / 2 NC (3 total). Part of the SIRIUS 3RA23 series (frame S2), the unit supports DIN Rail and surface mounting with screw terminals and is rated for operation within the specified voltage and frequency ranges, with IP20 protection and enclosure not included.
Key features
- - Coil Voltage: 20–33 V AC/DC
- - Poles and contacts: 3 main contacts (3 NO, 0 NC)
- auxiliary contacts: 2 NO / 2 NC (3 total)
- - Reversing: Yes
- - Phase: Three
- - Mounting: DIN Rail, Surface
- - Terminal connection: Screw
- - Frame/Series: S2, SIRIUS 3RA23
- - Maximum voltage: 690V AC
- Frequency: 50/60 Hz
- - Full load: Inductive 40 A, Resistive 60 A
- - Dimensions (W x H x D): 7.87 in x 7.08 in x 11.80 in
- - Enclosure/IP: IP20
- Enclosure not included
- - Operating temperature: -13°F to 140°F
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.81
- Package Width: 7.88
- Package Height: 7.09
- Package Weight: 5.51
