IEC Magnetic Contactor, 2NC/2NO, 220V-240V AC, 3 P, Reversing, Screw MPN:3RA23358XB301AP6
Free Shipping
In Stock

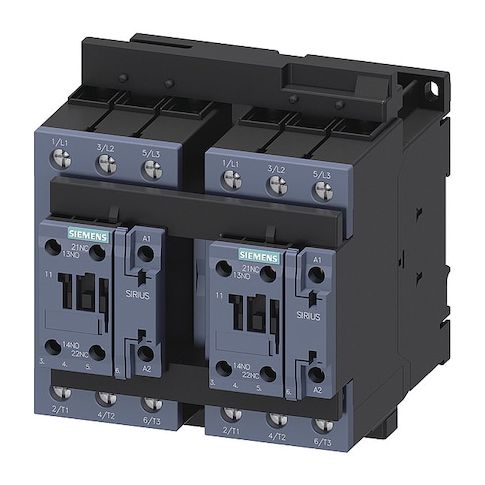

The Siemens SIRIUS 3RA23 IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in various applications. With its 2NC/2NO configuration and 220-240V AC coil, it provides seamless control and protection for motors, pumps, and other equipment. Its reversing functionality and 3-pole design make it suitable for use in conveyor systems, elevators, and other industrial settings. The contactor's robust construction and IP20 rating ensure reliable operation in harsh environments, while its screw-terminal connections and DIN rail mounting make it easy to integrate into existing systems. Ideal for use in commercial and industrial settings.
Top product features:
- It switches power circuits within specified parameters.
- It has a reversing functionality as specified by manufacturer instructions.
- It has auxiliary contacts configured as 2NO/2NC.
Top product applications:
- Industrial Automation Systems
- Power Distribution Panels
- Machine Control Systems
This item is an IEC Magnetic Contactor rated for switching power circuits within specified parameters. It is a three-pole, reversing device operated by a 220–240 V AC coil, with auxiliary contacts configured as 2NO/2NC. It belongs to the Siemens SIRIUS 3RA23 series and uses screw-terminal connections, mountable on a DIN rail or a surface in a vertical orientation. It is rated for use in environments conforming to IP20 standards and for voltages up to 690V AC within specified conditions. It is rated for operation at frequencies of 50/60 Hz and does not include surge suppression or enclosure features.
Key features
- - Coil voltage: 220–240 V AC
- - Poles and main contacts: 3 poles
- 3 normally open main contacts
- 0 normally closed main contacts
- - Reversing: designed with reversing functionality as specified by manufacturer instructions
- - Auxiliary contacts: Included
- configuration 2NO/2NC
- - Frame/Series: S2, Series SIRIUS 3RA23, IEC style
- - Mounting and terminals: Vertical mounting
- DIN Rail or Surface
- Terminal connection: Screw
- - Electrical ratings: voltages up to 690V AC within specified conditions
- IP20
- - Operating range and durability: -13°F to 140°F
- tested to withstand up to approximately 10 million mechanical operations under normal conditions
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.88
- Package Width: 10.08
- Package Height: 9.33
- Package Weight: 3.80
