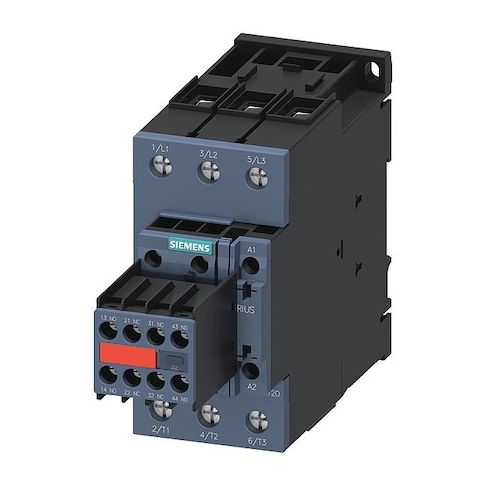

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20381KB443MA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in various industrial applications. Designed for use in control panel applications, this 3-pole, non-reversing device features a 24V DC coil and includes four auxiliary contacts configured as 2NO/2NC. With a mechanical lifespan of approximately 10 million operations, it provides high durability and reliability. Suitable for use in environments with ambient temperatures between -13°F and 140°F, this contactor is ideal for applications in the manufacturing, oil and gas, and chemical industries, where precise control and safety are paramount.
Top product features:
- The SIEMENS IEC Magnetic Contactor has a 2NC/2NO auxiliary contact configuration.
- It is a 3-pole, non-reversing device.
- It includes a surge suppression device compliant with applicable standards.
Top product applications:
- Control power circuits in control panel applications
- Use in industrial automation and control systems
- Implement safety features in machinery and equipment
The SIEMENS IEC Magnetic Contactor is an IEC-style, electrically operated switching device used to control power circuits. It is a 3-pole, non-reversing device with a 24 V DC coil, rated for operation within specified control panel applications. It includes four auxiliary contacts configured as 2NO/2NC and is part of the SIRIUS 3RT Safety Contactor family (frame size S2), including a surge suppression device compliant with applicable standards.
Key features
- - Coil voltage: 24 V DC
- - Auxiliary contacts: 4 total (2NC/2NO)
- - Main contacts: 3 poles, normally open
- - Reversing: Non-Reversing
- - Frame/Series: Frame S2
- SIRIUS 3RT Safety Contactors
- - Mounting: DIN Rail, Surface
- - Electrical connection: Screws
- - Enclosure: IP20
- No enclosure
- - Surge suppression device: Yes
- compliant with applicable standards
- - Rated for operation at voltages up to 690 V AC within specified conditions
- - Full load amps: Inductive 65 A
- Resistive 90 A
- - Mechanical durability: has a mechanical lifespan of approximately 10 million operations under normal use conditions
- - Ambient operating temperature: rated for ambient temperatures between -13°F and 140°F as per specifications
- - Overall dimensions: 5.15 in W x 7.32 in D x 3.15 in H
- - Includes auxiliary contacts: Yes (4 total)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.32
- Package Width: 5.16
- Package Height: 3.15
- Package Weight: 2.62
