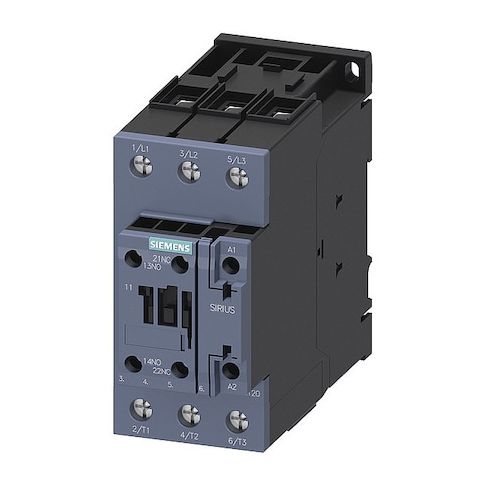

IEC Magnetic Contactor, 1NC/1NO, 220V-240V AC, 3 P, Non-Reversing, Screw MPN:3RT20381AP60

• The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing device rated for operation within IEC standards. It uses an electromagnetic coil to open and close contacts, suitable for controlling motors, lighting, and other industrial loads within specified parameters. The unit's dimensions conform to standard sizes for control panel applications.

  - Coil Voltage: 220–240 V AC

• - Auxiliary contacts: 2 total (1 NO / 1 NC)
• - Main contacts: 3 normally open
• - Poles: 3
• - Frame/Series: S2 (Series: SIRIUS 3RT20)
• - Mounting Style: DIN Rail, Surface
• - Electrical connection: Screws
• - Reversing: Non-Reversing
• - Enclosure: No Enclosure
• - IP Rating: IP20
• - Maximum voltage rating: 690 V AC
• - Frequency: 50/60 Hz
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Max operating watts: 37 kW (at 400V, AC-3)
• 59 kW (at 400V, AC-1)
• - Mounting hole diameter: 0.20 in
• - Mounting hole distances (Height x Width): 3.84 in x 1.77 in
• - Overall dimensions (W x H x D): 2.44 in x 5.59 in x 4.82 in
• - Series: SIRIUS 3RT20
