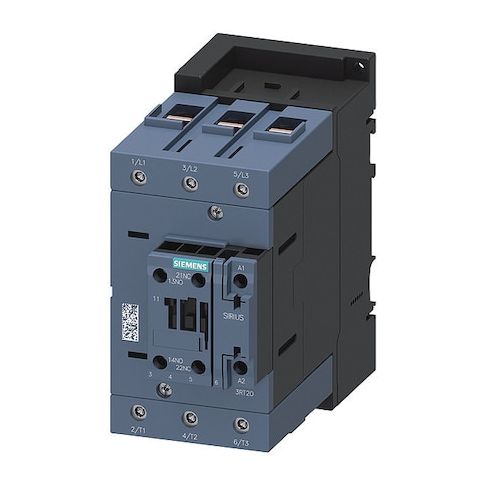

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20461AM20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switching device designed for use in a variety of applications, including motor control, lighting, and other power circuits. Its 3-pole, non-reversing design provides a secure and controlled switching solution, while its screw terminals and compact size make it easy to integrate into existing systems. With a maximum voltage rating of 1000 V AC and a wide range of horsepower ratings, this contactor is suitable for use in commercial and industrial settings, offering a reliable and efficient solution for power switching and control.
Top product features:
- The IEC Magnetic Contactor uses an electromagnetic coil to open or close contacts and switch power circuits.
- It includes two auxiliary contacts with standard configurations.
- It is rated for use up to a maximum voltage of 1000 V AC.
Top product applications:
- Motor control in industrial automation
- Lighting control in commercial buildings
- Power switching in electrical distribution systems
The IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device that uses an electromagnetic coil to open or close contacts and switch power circuits for motors, lighting, and other loads. It is rated for operation within the specified voltage range of 208 V AC and uses screw terminals for wiring. This unit is part of the SIRIUS 3RT20 family (frame size S3) and includes two auxiliary contacts with standard configurations.
Key features:
- - Poles: 3
- - Auxiliary contacts: 2 total (standard configurations)
- - Coil voltage: 208 V AC
- - Reversing: Non-Reversing
- - Series/Frame: SIRIUS 3RT20, Frame Size S3
- - Electrical connection: Screw
- - Enclosure: No Enclosure
- IP20
- - Rated for use up to a maximum voltage of 1000 V AC
- - Full Load Amps: Inductive 96 A
- Resistive 130 A
- - HP @ 3 Phase: 208V 30 hp
- 240V 30 hp
- 480V 75 hp
- 575V 75 hp
- - Frequency: 50/60 Hz
- - Has an expected mechanical lifespan based on typical usage conditions
- - Designed to operate within the specified temperature range of -13 °F to 140 °F
- - Dimensions: Height 5.51 in
- Width 2.76 in
- Depth 5.98 in
- - Mounting style: DIN Rail, Surface
- - Mounting hole diameter: 0.20 in
- - Mounting hole distance (Height): 5.12 in
- (Width): 2.36 in
- - Embedded surge suppressor: No
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.65
- Package Width: 6.26
- Package Height: 3.19
- Package Weight: 3.73
