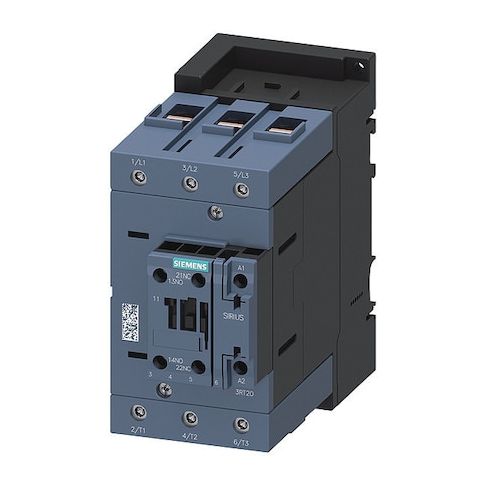

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20461AC20

• SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing device with 1NO/1NC auxiliary contacts and screw terminals. It uses a 24 V AC coil to actuate its contacts and is part of the SIRIUS 3RT20 series (frame size S3). As an IEC magnetic contactor, it operates by switching power circuits via an electromagnetic coil, in accordance with its rated specifications, with standardized sizing for control panels.

  - Poles: 3

• Main contacts: 3 normally open
• - Auxiliary contacts: 2 total (1NO/1NC)
• Includes auxiliary contacts: Yes
• - Coil voltage: 24 V AC
• Frequency: 50/60 Hz
• - Electrical connection: Screws
• - Mounting: DIN Rail, Surface
• Mounting position: Vertical
• - Enclosure: No Enclosure
• IP Rating: IP20
• - Maximum voltage rating: 1000 V AC
• - Full Load Amps: 96 A (inductive)
• 130 A (resistive) — specified for maximum current ratings under standard conditions
• - Max operating watts: 45 kW (at 400V, AC-3)
• 86 kW (at 400V, AC-1) — rated for applications up to approximately 45 kW at 400 V AC-3 and up to approximately 86 kW at 400 V AC-1, as per manufacturer specifications
• - Dimensions: Height 5.51 in
• Width 2.76 in
• Depth 5.98 in
• - Mechanical durability: 10,000,000 cycles — tested for mechanical durability over a specified number of cycles under normal operating conditions
• - Operating temperature: Min -13°F
• Max 140°F — designed to operate within the temperature range of -13°F to +140°F as per product specifications
• - Mounting hole diameter: 0.2 in
• Hole spacing (Height) 5.12 in
• Hole spacing (Width) 2.36 in
• - Reversing: No
• Reversing capability: Non-Reversing
• - Series: SIRIUS 3RT20
• Frame Size: S3
• - Standards: REACH Art 33, WEEE (2012/19/EU)
