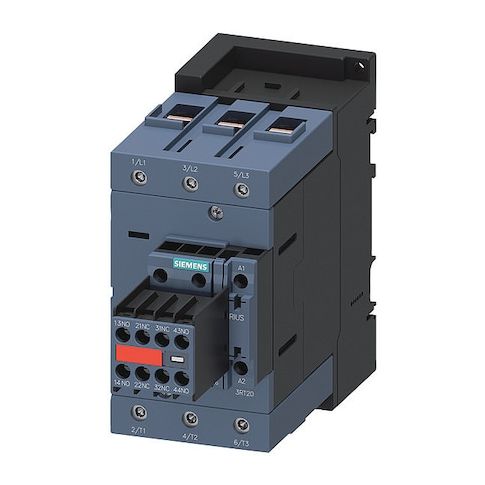

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20461AK643MA0

• The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switching device used to control power circuits by energizing an electromagnetic coil to open or close contacts. It is a 3-pole, non-reversing unit with screw terminals and four auxiliary contacts configured as 2 normally open and 2 normally closed. It belongs to the SIRIUS 3RT Safety Contactor series (frame size S3) and is rated for use in control-panel applications within specified parameters.

  - Coil voltage: 110–120 V AC

• - Poles and main contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary contacts: 4 total (2 NO/2 NC)
• - Reversing: Non-Reversing
• - Series/Frame: SIRIUS 3RT
• Frame size S3
• - Terminal connection: Screws
• - Mounting style: DIN Rail, Surface
• - Enclosure: No Enclosure
• IP20
• - Frequency: 50/60 Hz
• - Maximum voltage rating: 1000 V AC
• - Full load current: Inductive 96 A
• Resistive 130 A
• - Mechanical durability: 10,000,000 cycles
• - Operating temperature: -13 °F to 140 °F
• - Dimensions: Depth 7.68 in, Height 5.51 in, Width 2.76 in
