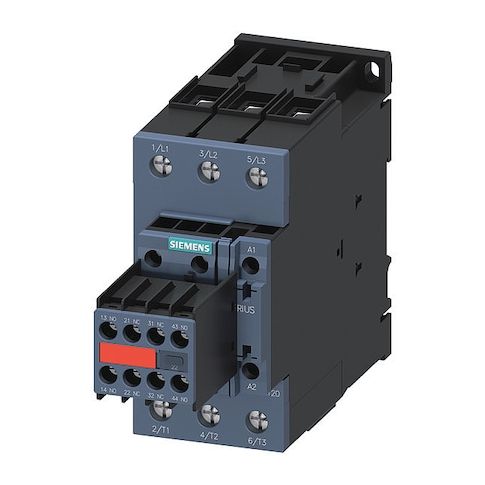

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20371KB443MA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for power circuits within specified parameters. With 3 main contacts and 4 auxiliary contacts, it provides a high level of control and flexibility in various applications. Its non-reversing feature ensures safe and consistent operation, while its surge suppression capabilities protect against electrical surges and spikes. Suitable for use in industrial and commercial settings, this contactor is ideal for HVAC systems, pumps, and other high-power equipment. Its compact design and DIN rail mounting options make it easy to integrate into existing systems, increasing overall efficiency and productivity.
Top product features:
- The device is an IEC Magnetic Contactor rated for switching power circuits within specified parameters.
- The device has 3 main contacts and 4 auxiliary contacts (2NC/2NO) for flexible control and monitoring.
- The device incorporates surge suppression features as specified by the manufacturer to protect against electrical surges.
Top product applications:
- Power distribution in industrial settings
- Motor control in automation systems
- High-power lighting control in commercial facilities
The device is an IEC Magnetic Contactor rated for switching power circuits within specified parameters.
- Poles: 3 main contacts
- 3 normally open main contacts
- - Auxiliary contacts: 4 total (2NC/2NO)
- - Coil voltage: 24 V DC
- - Reversing: Non-Reversing
- - Frame/Series: Frame Size S2
- Series SIRIUS 3RT Safety Contactors
- - Electrical connection: Compatible with screw terminal wiring according to standard installation practices
- - Embedded surge suppressor: Incorporates surge suppression features as specified by the manufacturer
- - Enclosure: does not include an enclosure
- IP20
- suitable for use in appropriate environmental conditions
- - Maximum voltage rating: Rated for operation up to a maximum of 690V AC within specified conditions
- - Full-load amps: Inductive 65 A
- Resistive 80 A
- - HP ratings (various voltages): Horsepower ratings are based on standardized testing at specified voltages
- actual performance may vary depending on application conditions
- - Dimensions: Depth 6.85 in
- Height 4.49 in
- Width 2.17 in (Overall: Height 7.45 in
- Width 3.15 in) -> Physical dimensions provided are approximate measurements based on product specifications
- - Mounting: DIN Rail, Surface
- Mounting position: Vertical
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Special feature: Varistor Surge Suppression
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 5.16
- Package Height: 3.15
- Package Weight: 2.66
