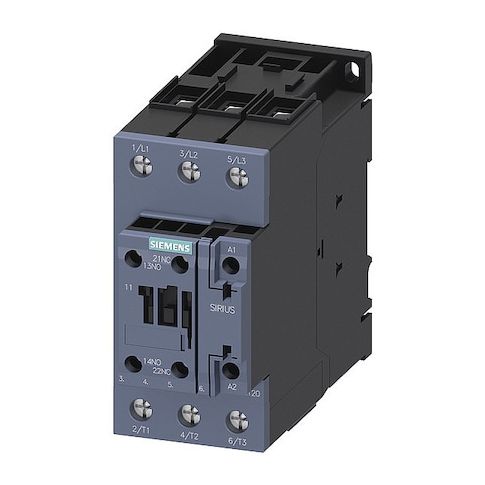

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20371AM20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching solution for control applications. Its electromagnetic coil design allows for easy operation in power circuits, while the 1NO/1NC auxiliary contacts provide additional functionality. Suitable for use in a variety of industries, this contactor is ideal for applications requiring a non-reversing switch, such as conveyor systems, pumps, and fans. With a high mechanical durability of 10,000,000 cycles and a wide operating temperature range, this device is designed to withstand demanding environments. Its compact design and easy mounting make it a convenient choice for control systems.
Top product features:
- The Siemens IEC Magnetic Contactor uses an electromagnetic coil to open or close its main contacts in power circuits.
- The device features 1NO/1NC auxiliary contacts.
- The contactor has a 3-pole main contact set.
Top product applications:
- Industrial control systems
- Power distribution systems
- Motor control systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing switch that uses an electromagnetic coil to open or close its main contacts in power circuits. It features 1NO/1NC auxiliary contacts and screw terminals, and it belongs to the SIRIUS 3RT20 family (frame S2). This device is rated for IEC-based control applications and includes two auxiliary contacts and a 3-pole main contact set.
- Coil voltage: 208 V AC
- Frequency: 50/60 Hz
- - Poles: 3
- Reversing: Non-Reversing
- - Main contacts: 3 normally open
- - Auxiliary contacts: 2 total (1 NO/1 NC)
- - Electrical connection: Screws
- Terminal connection: Screw
- - Frame size/Series: S2
- Series: SIRIUS 3RT20
- - Rated for operation within the specified voltage ranges up to 690 V AC
- - IP Rating: IP20
- Enclosure: No Enclosure
- - Mounting: DIN Rail, Surface
- Mounting position: Vertical
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Mechanical durability: 10,000,000 cycles
- - Operating temperature: -13 °F to 140 °F
- - Overall dimensions: 5.59 in H x 2.44 in W x 4.82 in D
- - Full Load Amps: Inductive 65 A
- Resistive 80 A
- - HP @ 3 Phase: 208V = 20 hp
- 240V = 20 hp
- 480V = 50 hp
- 575V = 50 hp
- - Includes auxiliary contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.70
- Package Height: 2.40
- Package Weight: 2.20
