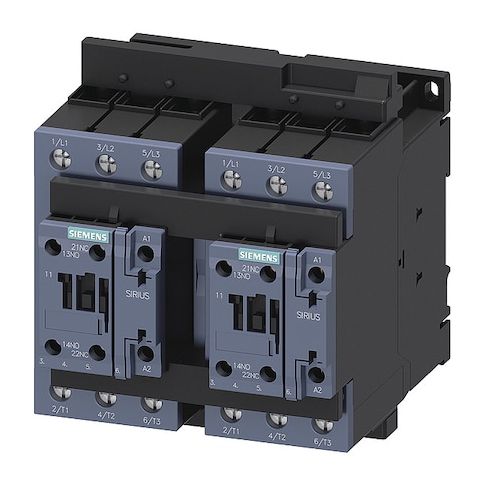

IEC Magnetic Contactor, 2NC/2NO, 20V-33V AC/DC, 3 P, Reversing, Screw MPN:3RA23388XB301NB3
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling motors and loads in IEC-standard circuits. Its 3-pole reversing design allows for flexible operation, while its 2NC/2NO auxiliary contacts provide precise control. Rated for operation up to 690V AC, this contactor is suitable for a wide range of applications, including industrial automation, HVAC systems, and power distribution. Its compact design and screw-type terminals make it easy to install and maintain, while its IP20 rating ensures protection against solid objects and water. Ideal for use in harsh environments, this contactor is a trusted choice for professionals and industries worldwide.
Top product features:
- Operates within a specified voltage range of 20-33 V AC/DC for controlling motors and other loads
- Supports three-phase operation and is rated for operation up to a maximum of 690V AC
- Features 2NC/2NO auxiliary contacts for additional switching capabilities
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
Siemens IEC Magnetic Contactor, 3-pole reversing model from the SIRIUS 3RA23 series. It is an IEC-style, electrically operated switch rated for operation within specified voltage ranges for controlling motors and other loads in IEC-standard circuits. The coil voltage range is 20–33 V AC/DC
- terminals are screw-type
- mounting options include DIN Rail or surface mounting. It supports three-phase operation, rated for operation up to a maximum of 690V AC, and uses auxiliary contacts configured as 2NC/2NO.
- Coil voltage range: 20–33 V AC/DC
- - Poles and main contacts: 3 poles
- 3 normally open main contacts
- 0 normally closed main contacts
- - Auxiliary contacts: 2NC/2NO
- - Reversing: Yes
- - Terminal connection: Screw
- - Mounting: DIN Rail, Surface
- - Frame/Series: Frame size S2
- Series SIRIUS 3RA23
- - Frequency: 50/60 Hz
- - IP rating: IP20
- - Enclosure: No Enclosure
- - Voltage rating: Rated for operation up to a maximum of 690V AC
- - Operating temperature: -13°F to 140°F
- - Mechanical durability: approximately 10 million cycles under normal operating conditions
- - Dimensions: Width 4.72 in
- Height 7.87 in
- Overall Depth 11.80 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.81
- Package Width: 7.88
- Package Height: 7.88
- Package Weight: 5.51
