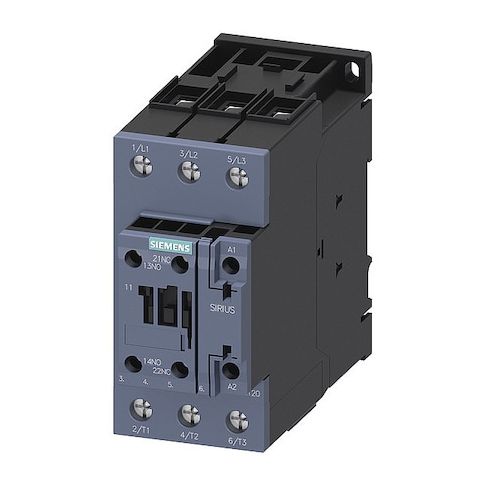

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw MPN:3RT20361AM20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical control device ideal for applications requiring three-pole, non-reversing switching within IEC standards. Suitable for use in a variety of industries, including manufacturing, oil and gas, and transportation, this contactor offers improved safety and reduced downtime. Its screw terminal connections and 1NO/1NC auxiliary contacts provide easy installation and reliable operation. Rated for operation up to 690V AC, this contactor is compatible with a range of voltages and frequencies, making it a versatile solution for applications requiring high power handling, such as motor control and power distribution.
Top product features:
- Three-pole, non-reversing electrical control device rated for switching within IEC standards.
- Utilizes screw terminal connections.
- Includes auxiliary contacts configured as 1NO/1NC.
Top product applications:
- Motor Control
- Industrial Control Panels
- Machine Automation
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electrical control device rated for switching within IEC standards. Compatible with specified voltage ranges
- utilizes screw terminal connections. It includes auxiliary contacts configured as 1NO/1NC
- part of the SIRIUS 3RT20 series (frame size S2). It is suitable for mounting on DIN rails or surfaces
- supplied without an enclosure.
Key features
- - Coil voltage: 208 V AC
- - Poles / Phase: 3, Three-phase
- - Reversing: Non-Reversing
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts (Normally Open): 3
- - Electrical connection: Screws
- - Rated for operation up to 690 V AC within specified conditions.
- - Frequency: 50/60 Hz
- - IP rating / Enclosure: IP20
- No Enclosure
- - Frame / Series / Style: Frame S2
- Series SIRIUS 3RT20
- IEC
- - Mounting style: DIN Rail, Surface
- - Mechanical endurance based on testing parameters.
- - Full Load Amps: Inductive 52 A
- Resistive 70 A
- - HP ratings (select examples): 3-phase 208V 15 hp
- 3-phase 240V 15 hp
- 3-phase 480V 40 hp
- 3-phase 575V 50 hp
- 1-phase 120V 3 hp
- 1-phase 240V 10 hp
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.82
- Package Width: 2.44
- Package Height: 5.59
- Package Weight: 2.15
