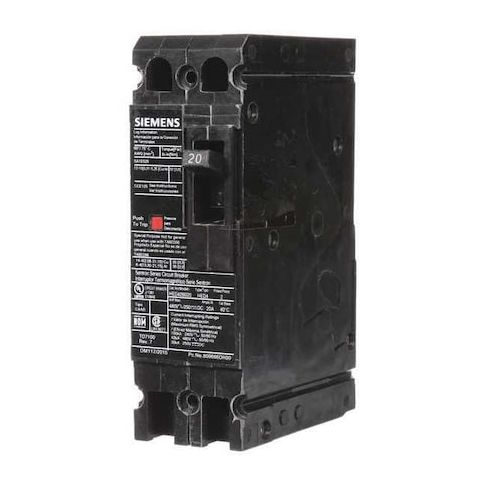

Molded Case Circuit Breaker, HED4 Series, 20A, 2 Pole, 480V AC, 42kA at 480V AC MPN:HED42B020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2033857
Molded Case Circuit Breaker, HED4 Series, 20A, 2 Pole, 480V AC, 42kA at 480V AC
Protect your high-voltage electrical systems with the Siemens HED4 Series Molded Case Circuit Breaker, designed for use with SB Switchboards and Sentron Panelboards. This 2-pole circuit breaker offers 20A of current protection at 480V AC, with a maximum AIR rating of 42kA. The high interrupting capacity and thermal magnetic trip type ensure reliable and efficient operation. Ideal for applications requiring high amp trip settings and low amp trip settings, this circuit breaker is perfect for industrial and commercial settings where high voltage systems are in use. Its compact design and durable construction make it a reliable choice for demanding environments.
Top product features:
- Protects against overloads and short circuits with a 42kA interrupting capacity at 480V AC.
- Trip type is thermal magnetic for reliable protection against overheating and electrical surges.
- Has a high amp trip setting of 20A for sensitive equipment protection.
Top product applications:
- Industrial Control Panels
- SB Switchboards
- Sentron Panelboards
Molded Case Circuit Breaker, 20 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 42kA at 480V AC, For Use With SB Switchboards, Sentron Panelboards, Series HED4, High Amp Trip Setting 20 A, Low Amp Trip Setting 20 A, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating 250V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Any, Frame Size 125A/ED
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 2.80
- Package Height: 5.60
- Package Weight: 2.51
Product info last updated on April 1, 2026 7:02pm UTC
Category: Circuit Protection
