Miniature Circuit Breaker, BQ Series, 30A, 3 Pole, 240V AC, 10kA at 240V AC MPN:BQ3B03000S01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1946874
Miniature Circuit Breaker, BQ Series, 30A, 3 Pole, 240V AC, 10kA at 240V AC

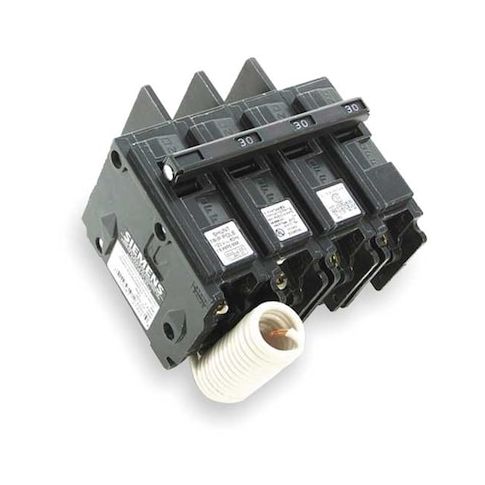

Protect your electrical system with the Siemens BQ Series 30A 3 Pole Miniature Circuit Breaker. This reliable component is designed for use with Siemens panelboards and features a shunt trip mechanism for fast and safe circuit interruption. With a maximum operating temperature of 104°F and a 10kA air rating at 240V AC, this circuit breaker provides robust protection against electrical surges and faults. Ideal for use in commercial and industrial settings, it also offers easy installation with a bolt-on mounting style and lug terminal connections. Ensure safe and efficient electrical operation with the BQ Series Miniature Circuit Breaker.
Top product features:
- Breaks circuit in case of overload or short circuit
- Protects against electrical shock with shunt trip mechanism
- Protects against overheating with maximum operating temperature of 104 Degrees F
Top product applications:
- Power Distribution in Commercial Buildings
- Panelboards in Industrial Settings
- Electrical Systems in High-Rise Buildings
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Three, Series BQ, Max. AIR Rating 10kA at 240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 4 in, Width 4 in, Depth 6 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 6 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.30
- Package Height: 3.70
- Package Weight: 1.55
Product info last updated on January 15, 2026 12:22am UTC
Category: Circuit Protection
