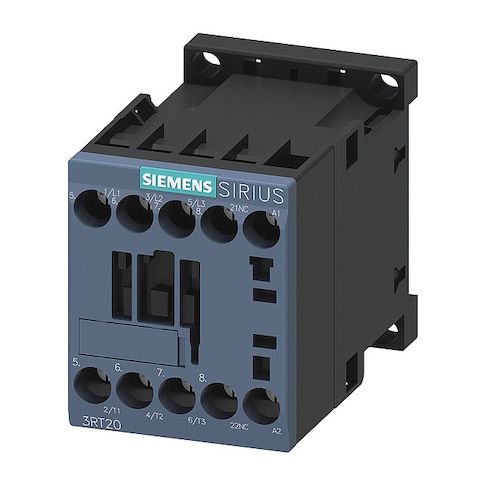

IEC Magnetic Contactor, 1NC, 230V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AP02

• The Siemens IEC Magnetic Contactor is a three-pole, non-reversing control device rated for operation within IEC standards. Compatible with coils rated at 230 V AC within specified parameters and includes three normally open main contacts and one auxiliary contact (1NC). Part of the SIRIUS 3RT20 family and frame size S00, it uses screw terminals and supports DIN Rail or surface mounting. The unit has a maximum voltage rating of 690V AC according to specifications, suitable for 50/60 Hz three-phase configurations, and complies with IP20 ingress protection rating

• supports vertical mounting orientation.

  Key features

• - Coil voltage: 230 V AC
• - Poles: 3
• - Main contacts: 3 normally open
• - Auxiliary contacts: 1 NC
• - Reversing: Non-Reversing
• - Frame/Series: S00 / SIRIUS 3RT20
• - Connection: Screw terminals
• - Mounting style: DIN Rail, Surface
• - IP rating: IP20
• - Max voltage rating: 690V AC (per specifications)
• - Frequency/Phase: 50/60 Hz, Three
• - Operating temperature: -13°F to 140°F
• - Enclosure: No Enclosure
• - Dimensions: Overall Width 1.97 in
• Overall Height 3.08 in
• Overall Depth 2.45 in
• - Mounting hardware: Mounting hole diameter 0.2 in
• hole distance H 1.97 in
• width 1.38 in
• Mounting position Vertical
• - Watts loss: 0.2W (current dependent)
• 4.2W (current independent)
• - Connection type: Screw
• - Nomenclature: 3-pole, 3 main contacts with 1 NC auxiliary contact
