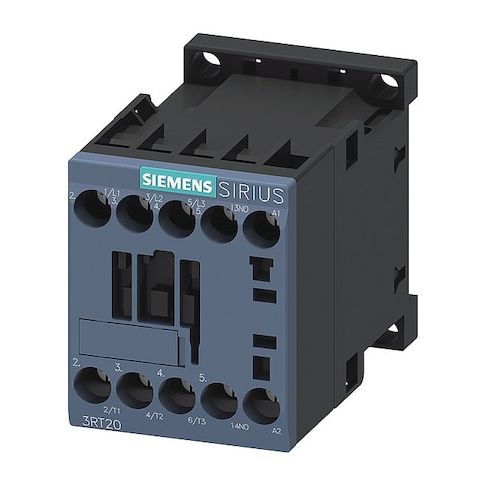

IEC Magnetic Contactor, 1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AF01
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device ideal for a wide range of industrial applications. With its 3-pole, non-reversing design and 1 normally open auxiliary contact, it provides precise control and flexibility in high-voltage systems. Suitable for DIN Rail or surface mounting, this contactor is perfect for use in control panels, motor starters, and other critical systems. Its compatibility with the SIRIUS 3RT20 series ensures seamless integration with existing infrastructure. By choosing this contactor, users can expect improved system reliability, reduced downtime, and enhanced overall performance.
Top product features:
- The IEC Magnetic Contactor has 3 main poles.
- The IEC Magnetic Contactor features a non-reversing switching mechanism.
- The IEC Magnetic Contactor has 1 normally open auxiliary contact.
Top product applications:
- Industrial automation
- Power distribution systems
- Motor control circuits
The IEC Magnetic Contactor is a 3-pole, non-reversing switching device with 1 normally open auxiliary contact and a coil rated for operation within the specified voltage range of 110 V AC. The product is compatible with the SIRIUS 3RT20 series (frame S00) and features screw terminal connections, suitable for DIN Rail or surface mounting.
- Poles/Contacts: 3 main poles
- 1 auxiliary contact (1NO)
- - Coil voltage: 110 V AC
- - Reversing: Non-Reversing
- - Frame/Series: Frame S00
- SIRIUS 3RT20
- - Mounting/Terminals: Mounting styles DIN Rail, Surface
- Terminal connection: Screws
- - Max voltage rating: Rated for use up to a maximum voltage of 690 V AC within specified conditions
- - Phase/Frequency: Three-phase
- 50/60 Hz
- - Full Load Amps: Inductive 7 A
- Resistive 18 A
- - IP Rating/Enclosure: IP20
- No Enclosure
- - Operating temperature: Designed to operate within the temperature range of -13°F to 140°F as specified
- - Dimensions: 3.2 in depth
- 1.95 in height
- 2.4 in width
- - Embedded surge suppressor: No
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.42
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.51
