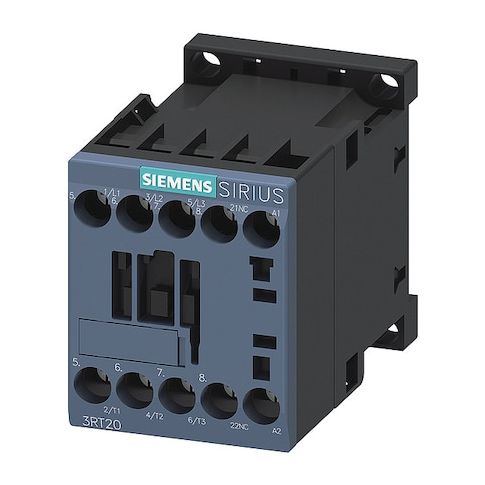

IEC Magnetic Contactor, 1NC, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AF02
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling industrial loads within IEC standards. Suitable for use in control panels, it features a 3-pole design with a coil-triggered mechanism, making it ideal for applications such as motor control, lighting, and other industrial processes. The non-reversing contactor includes screw terminals and one auxiliary contact, providing a high level of control and flexibility. Its robust design ensures reliable operation in temperatures ranging from -13°F to 140°F, with a mechanical durability of 30 million cycles, making it a valuable addition to any industrial control system.
Top product features:
- The Siemens IEC Magnetic Contactor is a 3-pole, coil-triggered switching device rated for operation within IEC standards.
- It uses an electromagnetic coil to open or close its contacts, suitable for controlling motors, lighting, and other industrial loads within specified parameters.
- This contactor includes screw terminals and one auxiliary contact as specified, fitting within standardized IEC magnetic contactor designs used in control panels.
Top product applications:
- Motor Control
- Lighting Control
- Industrial Load Control
The Siemens IEC Magnetic Contactor is a 3-pole, coil-triggered switching device rated for operation within IEC standards. It uses an electromagnetic coil to open or close its contacts, suitable for controlling motors, lighting, and other industrial loads within specified parameters. This non-reversing contactor includes screw terminals and one auxiliary contact (1NC) as specified, fitting within standardized IEC magnetic contactor designs used in control panels.
Key features
- - Coil Voltage: 110 V AC
- - Poles: 3
- - Main contacts: 3 normally open
- - Auxiliary contacts: 1 NC (1 auxiliary contact)
- - Auxiliary contact configuration: 1NC
- - Reversing capability: Rated for non-reversing applications
- - Phase: Three
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Electrical connection: Screws
- - IP Rating: IP20
- - Includes Auxiliary Contacts: Yes
- - NEMA Enclosure Rating: No Enclosure
- - Voltage rating: Rated for use at voltages up to 690 V AC within specified conditions
- - Current rating: Up to 7 A inductive
- 18 A resistive under specified conditions
- - Watts loss: 0.2 W (current dependent)
- 4.2 W (current independent)
- - Frequency: 50/60 Hz
- - Operating temperature: -13 °F to 140 °F (min/max)
- - Mechanical durability: 30,000,000 cycles
- - Dimensions (approx): Depth 73 mm
- Height 58 mm
- Width 45 mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.42
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.50
