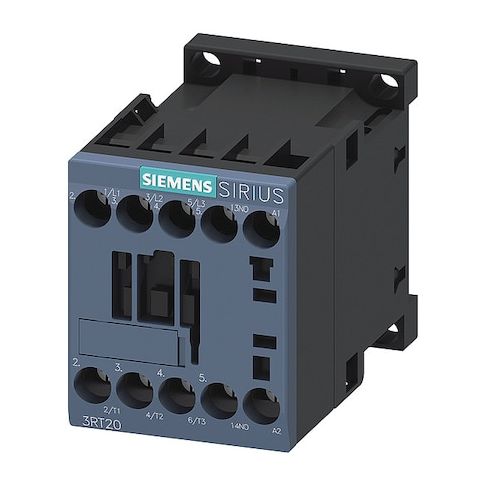

IEC Magnetic Contactor, 1NO, 100V-110V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AG61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical control device designed for a wide range of applications. Its 3-pole, non-reversing configuration makes it ideal for use in motor control and power distribution systems. With a coil rated 100-110 V AC and one normally open auxiliary contact, this contactor is suitable for use in industrial settings where high reliability and efficiency are crucial. Its compact design and easy installation make it a great choice for applications such as HVAC systems, conveyor belts, and pumps, where a high level of control and reliability is required.
Top product features:
- The Siemens IEC Magnetic Contactor has one normally open auxiliary contact.
- It is a non-reversing electrical control device.
- It has screw terminals for wiring.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical control device (IEC Magnetic Contactor) with a coil rated 100–110 V AC and one normally open auxiliary contact. It uses screw terminals for wiring and is part of the SIRIUS 3RT20 series, frame size S00, rated for installation on DIN Rail or surface mounting as specified.
- Coil Voltage: 100–110 V AC
- - Poles / Phase: 3, Three-phase
- - Reversing Capability: Non-Reversing
- - Auxiliary Contacts: 1 NO (Includes auxiliary contact)
- - Main Contacts: 3 normally open
- - Electrical Connection: Screws
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - IP Rating: IP20
- - Maximum Voltage Rating: rated for operation up to 690 V AC within its specifications
- - Full Load Current: up to 7 A (inductive)
- 18 A (resistive) under specified conditions
- - HP Ratings (examples by voltage/phase): Power ratings are provided based on standard testing conditions
- actual performance may vary depending on application
- - Frequency: 50/60 Hz
- - Operating Temperature Range: -13 °F to 140 °F
- - Embedded Surge Suppressor: does not include a surge suppression device
- external measures may be necessary if required by application
- - Enclosure: No Enclosure
- - Dimensions: Width 45 mm (1.95 in)
- Height 58 mm (2.40 in)
- Depth 73 mm (3.30 in)
- - Mounting: DIN Rail, Surface
- - Mounting Hole Details: Diameter 0.2 in
- Height spacing 1.97 in
- Width spacing 1.38 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.40
- Package Height: 2.00
- Package Weight: 0.50
