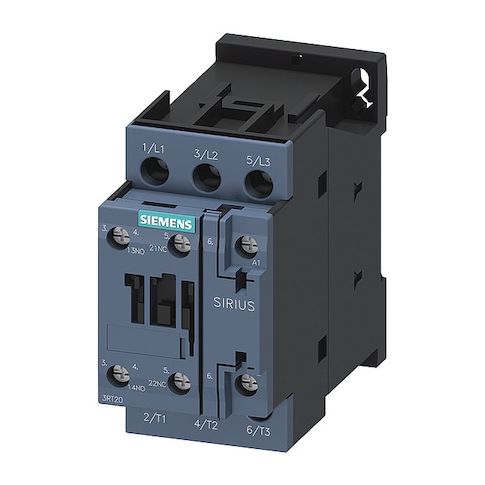

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AF00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for switching applications in various industries. This 3-pole, non-reversing contactor is designed for use in control circuits and provides two auxiliary contacts for additional functionality. Its compact design and screw terminal connections make it easy to integrate into existing systems. The contactor is suitable for use in harsh environments, with an operating temperature range of -13°F to 140°F and a mechanical durability of 10,000,000 cycles. Ideal for applications in manufacturing, HVAC, and power distribution, this contactor ensures safe and reliable operation in a wide range of settings.
Top product features:
- The Siemens IEC Magnetic Contactor has three-pole main contacts in a non-reversing configuration.
- It has screw terminals for electrical connections in accordance with wiring standards.
- The unit is rated for operation up to a maximum of 690 V AC under normal conditions.
Top product applications:
- Industrial control systems
- Motor control circuits
- Automated manufacturing equipment
The Siemens IEC Magnetic Contactor is rated for switching applications within specified parameters. It is a 3-pole, non-reversing contactor with a nominal 110 V AC coil and two auxiliary contacts
- configuration as specified in technical documentation. The unit utilizes screw terminals for electrical connections in accordance with wiring standards and belongs to the SIRIUS 3RT20 family with frame size S0
- compatible with DIN Rail and surface mounting as per installation guidelines.
Key features
- - Auxiliary contacts: 2
- configuration as specified in technical documentation
- - Coil: rated for operation at nominal voltage of 110 V AC and frequency of 50 Hz within the specified ranges
- - Main contacts: three-pole main contacts
- non-reversing configuration
- - Frame/Series/Code: S0
- Series: SIRIUS 3RT20
- - Mounting: DIN Rail, Surface
- Intended for vertical mounting orientation as per installation instructions
- - Electrical connection: screw terminals for electrical connections in accordance with wiring standards
- - IP Rating: IP20
- - Maximum voltage rating: rated for operation up to a maximum of 690 V AC under normal conditions
- - Full load current: rated for full load currents up to these values within specified operating conditions
- - Horsepower ratings are based on standard testing conditions and do not imply guaranteed performance under all circumstances
- - Mechanical durability: 10,000,000 cycles
- - Operating temperature: -13 °F to 140 °F
- - Dimensions: Width 45 mm (2.13 in)
- Height 85 mm (4.18 in)
- Depth 97 mm (3.63 in)
- - Enclosure: No Enclosure
- - Frequency: 50 Hz
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.90
