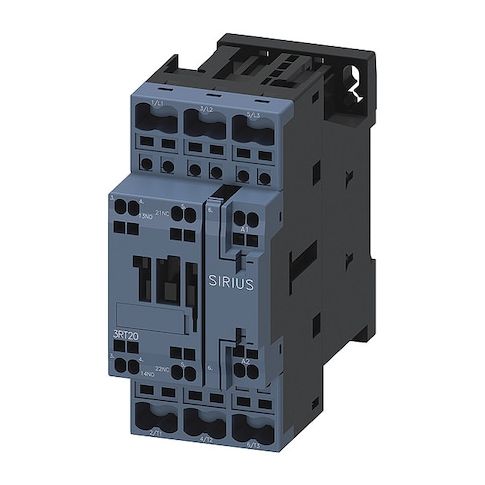

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20262AC20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling and monitoring electrical circuits in various applications. Its 3-pole, non-reversing design ensures consistent performance and safety, while the 24V AC coil and spring-type terminals provide easy installation and maintenance. Suitable for use in industrial automation, HVAC systems, and other three-phase applications, this contactor offers improved mechanical durability with 10 million cycles and IP20 protection. Its compact design allows for DIN Rail or surface mounting, making it an ideal choice for space-constrained environments, and its 1NO/1NC auxiliary contacts provide additional functionality.
Top product features:
- The product has a 3-pole, non-reversing configuration.
- It has two auxiliary contacts with a configuration of 1NO/1NC.
- The unit includes three normally open main contacts.
Top product applications:
- Industrial Automation Systems
- Power Distribution and Control Panels
- Motor Control Systems
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing IEC magnetic contactor from the SIRIUS 3RT20 family. It has a 24 V AC coil and includes two auxiliary contacts, configuration as 1NO/1NC, in addition to three normally open main contacts. The unit uses spring-type terminals and is compatible with DIN Rail or surface mounting options, with frame size S0 and rated for operation within the specified voltage and frequency ranges.
Key features
- - Coil Voltage: 24 V AC
- - Poles/Phase: 3 poles
- Three-phase
- - Reversing: Non-Reversing
- - Auxiliary Contacts: 2 total, configuration as 1NO/1NC
- - Main Contacts: 3 normally open
- - Frame/Series: SIRIUS 3RT20
- Frame Size: S0
- - Mounting: DIN Rail, Surface
- - Terminal Connection: Spring Type
- - IP Rating: IP20
- - Maximum Voltage: 690 V AC
- - Frequency: 50/60 Hz
- - Overall Dimensions: Height 4.25 in, Width 2.1 in, Depth 4.15 in
- - Includes Auxiliary Contacts: Yes
- - Enclosure: No Enclosure
- - Mechanical Durability: 10,000,000 cycles
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.27
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.98
