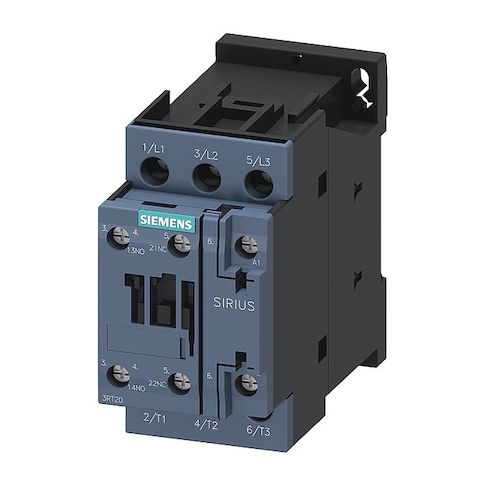

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AG20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switch designed for controlling power circuits. Its 3-pole, non-reversing configuration ensures safe and precise control, while the 110V AC coil and screw-terminal connections provide easy installation and maintenance. Suitable for a wide range of applications, including industrial automation, HVAC systems, and power distribution, this contactor offers improved system reliability and reduced downtime. Its compact design and DIN rail or surface mounting options make it ideal for use in tight spaces, and its robust construction withstands up to 10 million cycles, ensuring a long and trouble-free service life.
Top product features:
- 3-pole, non-reversing electrical switch used to control power circuits
- Features two auxiliary contacts, one normally open and one normally closed
- Has screw-terminal connections for easy wiring
Top product applications:
- Control Power Circuits in Industrial Automation
- Control Lighting Systems in Commercial Buildings
- Control HVAC Systems in Residential and Commercial Buildings
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch (IEC style) used to control power circuits. It features a 110 V AC coil and screw-terminal connections, with two auxiliary contacts (1 normally open and 1 normally closed). It belongs to the SIRIUS 3RT20 family, frame size S0, and is suited for DIN rail or surface mounting.
Key features
- - Coil Voltage: 110 V AC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 2 total (1 NO, 1 NC) / Auxiliary contact form 1NC/1NO
- - Reversing Capability: Non-Reversing
- - Frame Size / Series: S0 / SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Electrical Connection: Screw terminals
- - Embedded Surge Suppressor: Not included
- - IP/NEMA Protection: IP20
- Enclosure: None
- - Maximum Voltage Rating: rated for operation within the specified voltage ranges
- - Frequency: 50/60 Hz
- - Temperatures: Maximum 140°F
- Minimum -13°F
- - Mechanical Durability: 10,000,000 cycles
- - Dimensions: Height 4.18 in, Width 2.13 in, Depth 3.63 in
- - Phase: Three
- - Response Time: AC and DC operation times
- ranges provided
- - Includes Auxiliary Contacts: Yes
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 21 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.88
