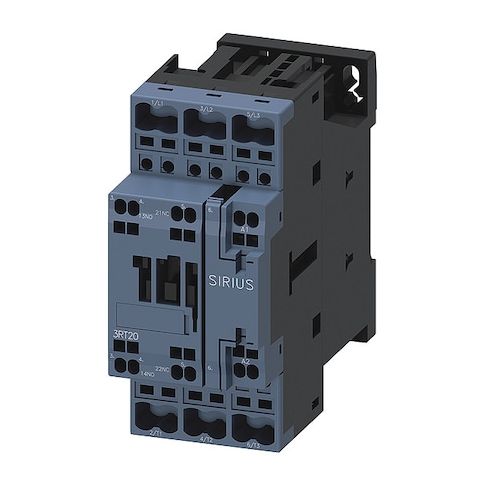

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20262AG20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for industrial applications requiring non-reversing operation. Suitable for switching motors, lighting, and other loads, this 3-pole model features a 110V AC coil and spring terminal type electrical connection. With two auxiliary contacts and a mechanical operating durability of 10 million cycles, it ensures consistent performance in demanding environments. Its compact design and versatile mounting options make it ideal for use in three-phase systems, while its IP20 rating and low watts loss of 1.9W (current dependent) make it a cost-effective choice for a range of industrial applications.
Top product features:
- The Siemens IEC Magnetic Contactor uses an electromagnetic coil to open or close contacts, suitable for switching motors, lighting, and other industrial loads when used within specified parameters.
- It features a 3-pole design for use in three-phase systems at frequencies of 50/60 Hz.
- The product includes two auxiliary contacts, 1NO/1NC, for additional control and monitoring capabilities.
Top product applications:
- Switching motors
- Switching lighting
- Switching other industrial loads
The Siemens IEC Magnetic Contactor is rated for operation within IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching motors, lighting, and other industrial loads when used within specified parameters. This 3-pole model features a 110 V AC coil
- rated as non-reversing
- electrical connection: spring terminal type. It includes two auxiliary contacts (1NO/1NC) and belongs to the SIRIUS 3RT20 family (Frame Size S0)
- compatible with DIN Rail or Surface mounting in vertical orientation.
- Auxiliary contacts: 2 total (1 NO / 1 NC)
- - Auxiliary contact configuration: 1NO/1NC
- - Coil voltage: 110 V AC
- - Poles: 3
- Main contacts: 3 normally open
- - Reversing capability: Rated as non-reversing
- intended for applications requiring non-reversing operation
- - Frame/Series/Code: SIRIUS 3RT20
- Frame Size: S0
- - Mounting style: DIN Rail or Surface
- Mounting position: Vertical
- - Electrical connection: spring terminal type
- - Maximum voltage: rated for use at voltages up to 690 V AC
- suitable for three-phase systems at frequencies of 50/60 Hz
- - IP Rating: IP20
- Enclosure: No Enclosure
- - Includes auxiliary contacts: Yes
- - Mechanical operating durability: 10,000,000 cycles
- - Watts loss: 1.9 W (current dependent)
- 10.5 W (current independent)
- - Dimensions: Depth 97 mm
- Height 102 mm
- Width 45 mm
- Overall Depth 4.26 in
- Overall Height 4.18 in
- Overall Width 2.13 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.27
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 1.00
