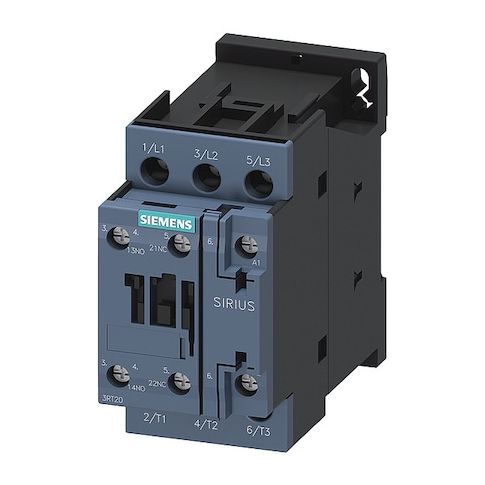

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw MPN:3RT20251AP00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of industrial applications. With its non-reversing design and three-pole configuration, it provides a high level of control and safety. The contactor is suitable for use in power supply systems, motor control, and other applications where a high level of reliability and efficiency are required. Its compact design and easy mounting options make it an ideal choice for use in tight spaces, and its compliance with international standards ensures safe and reliable operation.
Top product features:
- Operates as a three-pole, non-reversing, electrically operated switch to control power circuits.
- Provides two auxiliary contacts (1NO/1NC) for additional functionality.
- Includes a 230 V AC coil for operation within specified voltage and frequency ranges.
Top product applications:
- Industrial Automation
- Electrical Panel Building
- Power Distribution Systems
The Siemens IEC Magnetic Contactor is a three‑pole, non‑reversing, electrically operated switch designed to control power circuits. It uses a 230 V AC coil and provides two auxiliary contacts (1NO/1NC). The unit belongs to the SIRIUS 3RT20 series (frame size S0) and is compatible with DIN Rail or surface mounting as specified. It is rated for operation within the specified voltage and frequency ranges, with full‑load currents of 17 A (inductive) and 40 A (resistive), and enclosed in a casing conforming to IP20 standards. It does not include an integrated surge suppression device.
- Coil Voltage: 230 V AC
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts: 3 normally open
- - Poles: 3
- - Reversing capability: Non-Reversing
- - Series/Frame: SIRIUS 3RT20, frame size S0
- - Maximum voltage rating: 690 V AC
- - Frequency: 50 Hz
- - IP Rating: IP20
- - Mounting: DIN Rail, Surface
- mounting position: Vertical
- - Electrical connection: Screws
- - Integrated surge suppression device: Not included
- - Dimensions (overall): Width 2.13 in (45 mm)
- Height 4.18 in (106 mm)
- Depth 3.63 in (97 mm)
- - Mounting holes: diameter 0.19 in
- distance height 2.36 in
- distance width 1.38 in
- - Full Load Amps: Inductive 17 A
- Resistive 40 A
- - Power loss: 0.6 W (current dependent)
- 7.6 W (current independent)
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Reversing: Non-Reversing
- - Phase: Three
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.89
