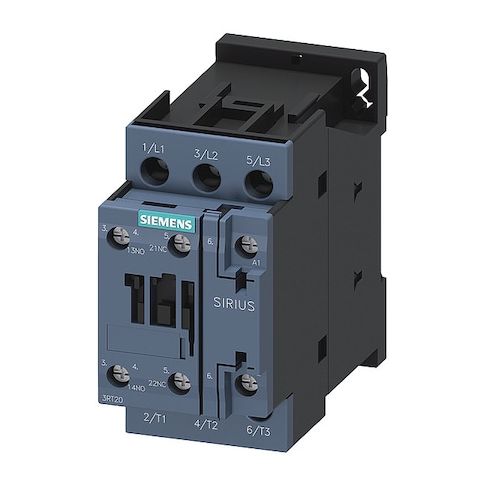

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AF00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for a wide range of applications, including industrial control systems, motor control, and automation. Its 3-pole, non-reversing design ensures smooth and consistent operation, while its 110V AC coil and screw-terminal connections provide easy installation and maintenance. Suitable for use in harsh environments, this contactor is rated for operation in temperatures from -13°F to 140°F and is compatible with DIN Rail or surface mounting. Ideal for applications requiring high reliability and efficiency, the Siemens IEC Magnetic Contactor is a trusted choice for industries such as manufacturing, oil and gas, and more.
Top product features:
- The Siemens IEC Magnetic Contactor includes auxiliary contacts (1NO/1NC) for additional functionality.
- It operates with a 110 V AC coil for compatibility with a wide range of electrical systems.
- It is rated for operation at voltages up to 690 V AC and full load currents up to 25 A inductive and 40 A resistive.
Top product applications:
- Industrial control systems
- Motor control circuits
- Power distribution panels
The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, IEC-style magnetic switch rated for operation within the specified electrical parameters. It operates with a 110 V AC coil
- includes auxiliary contacts (1NO/1NC) as specified. Compatible with DIN Rail or surface mounting in a vertical orientation using screw-terminals, as specified.
Key features:
- - Coil voltage: 110 V AC
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts: 3 normally open
- 3 poles
- - Frame/Series: S0 frame, SIRIUS 3RT20
- - Mounting: DIN Rail or Surface
- Vertical orientation
- - Electrical connections: Screw terminals
- - IP rating: IP20
- - Maximum voltage rating: rated for operation at voltages up to 690 V AC within its electrical ratings
- - Phase/Frequency: Three phase
- 50 Hz
- - Full load current: rated for full load currents up to 25 A inductive and 40 A resistive within its electrical specifications
- - Horsepower ratings: are based on standard testing conditions and do not imply suitability for all applications
- - Embedded surge suppressor: does not include an integrated surge suppression feature
- external protection may be required according to application needs
- - Includes auxiliary contacts: Yes
- - Mechanical durability: tested for up to approximately [specify if known], but actual lifespan depends on operating conditions
- - Maximum operating watts: rated for maximum operational wattage within specified limits under normal use conditions
- - Operating temperatures: -13°F to 140°F
- - Enclosure: No Enclosure
- - Standards: REACH Art 33, WEEE
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.92
