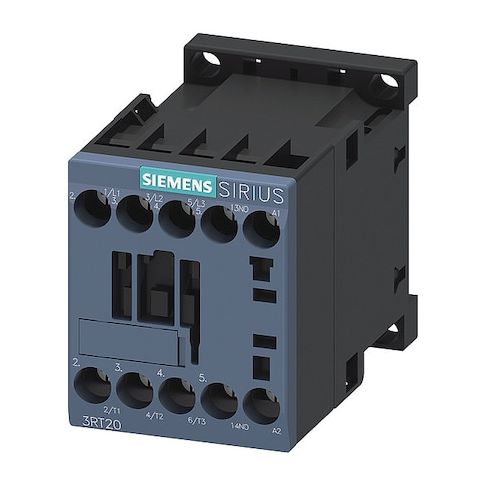

IEC Magnetic Contactor, 1NO, 230V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AP01
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switch designed for use in a variety of applications. Rated for 230V AC and 3 poles, this non-reversing contactor is ideal for use in control circuits where a high level of switching reliability is required. With a mechanical durability of 30 million cycles and a load current rating of up to 22A, this contactor is suitable for use in industrial control systems, machine automation, and other applications where high-performance switching is necessary. Its compact design and easy mounting options make it a convenient choice for a range of applications.
Top product features:
- Three-pole operation allows for control of multiple circuits with a single device.
- Non-reversing functionality ensures consistent and predictable switching behavior.
- Three normally open main contacts enable reliable and efficient switching of electrical loads.
Top product applications:
- Automotive applications requiring high voltage and current switching capabilities
- Industrial control systems for machinery and equipment operation
- Home automation and building management systems for lighting and HVAC control
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing electrical switch rated for operation within the specified IEC standards. Coils rated at 230 V AC and contain three normally open main contacts and one auxiliary contact (no performance guarantee implied), all housed in frame size S00 within the SIRIUS 3RT20 series.
- Coil voltage: 230 V AC
- - Poles / Main contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary contacts: 1 normally open contact (includes auxiliary contacts)
- - Reversing: Non-Reversing
- - Frame / Series: Frame size S00
- Series SIRIUS 3RT20
- - Mounting: DIN Rail, Surface
- Mounting position: Vertical
- - Terminal connections: Screws
- - Maximum voltage / Frequency: 690 V AC
- 50/60 Hz
- - IP rating: IP20
- - Embedded surge suppressor: No
- - Enclosure rating: No Enclosure
- - Load current ratings: 16 A (inductive)
- 22 A (resistive)
- - Mechanical durability: 30,000,000 cycles
- - Dimensions: Height 3.08 in
- Width 1.97 in
- Depth 2.45 in
- - Standards: REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.42
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.51
