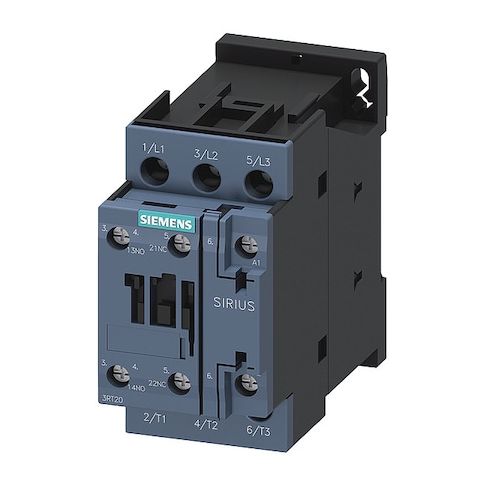

IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AG20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in control panels. Designed for use in a variety of applications, including industrial automation, HVAC, and power distribution, this device offers a non-reversing, 3-pole configuration with screw terminals and auxiliary contacts. Its compact design and robust construction ensure long-lasting performance, with a mechanical durability of 10,000,000 cycles. By streamlining power control and reducing energy consumption, this contactor helps improve system efficiency and reduce maintenance costs. Its versatility and reliability make it an ideal choice for a range of industries and applications.
Top product features:
- The Siemens IEC Magnetic Contactor has 3 normally open main contacts.
- It has 2 auxiliary contacts, 1 normally open and 1 normally closed.
- It is a non-reversing device.
Top product applications:
- Industrial Automation Systems
- Control Panels for Machines and Equipment
- Power Distribution Systems in Commercial and Residential Buildings
The Siemens IEC Magnetic Contactor is an IEC-standard, electrically operated switch used to control power circuits in control panels. It is a 3-pole, non-reversing device rated for operation within the specified voltage ranges, with screw terminals and auxiliary contacts (1NO/1NC). It is part of the SIRIUS 3RT20 family (frame size S0) and supports DIN Rail or surface mounting.
- Coil voltage: 110 V AC
- - Poles: 3
- - Main contacts: 3 normally open
- - Auxiliary contacts: 2 (1NO/1NC)
- - Reversing: Non-Reversing
- - Electrical connection: Screws
- - Mounting style: DIN Rail, Surface
- - Frame/Series: SIRIUS 3RT20
- Frame Size: S0
- - IP rating: IP20
- - NEMA enclosure rating: No Enclosure
- - Phase: Three
- Frequency: 50/60 Hz
- - Rated for operation within the specified voltage ranges.
- - Designed to operate within the specified temperature range.
- - Mechanical durability: 10,000,000 cycles
- - Dimensions: Depth 97 mm
- Height 85 mm
- Width 45 mm
The product's specifications meet industry standards for electrical components.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.92
