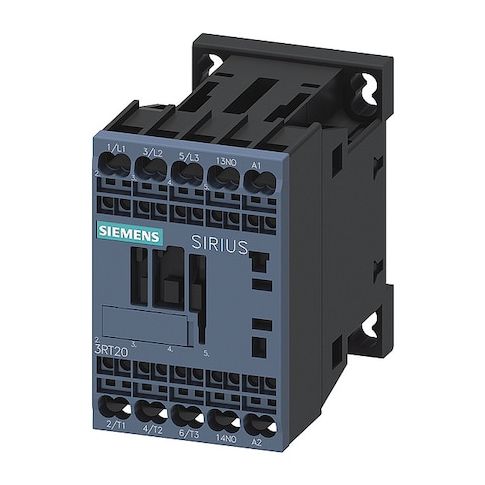

IEC Magnetic Contactor, 1NO, 110V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20182AF01
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in various applications. With its 3-pole design and 110V AC coil, it can be used in a wide range of settings, including industrial automation, power distribution, and control systems. The non-reversing operation and spring-type terminals ensure safe and easy mounting on DIN Rail or surface. The contactor's high mechanical operating durability of 30 million cycles makes it a long-lasting choice for demanding applications. Its compact design and easy installation make it an ideal choice for industries requiring efficient and reliable control solutions.
Top product features:
- The Siemens IEC Magnetic Contactor has 3 normally open main contacts.
- The device operates within a non-reversing mode.
- The unit features spring-type terminals.
Top product applications:
- Industrial control systems for manufacturing and production environments
- Power distribution and control systems for commercial buildings and facilities
- Automated machinery and equipment control in the food and beverage industry
The Siemens IEC Magnetic Contactor is a 3-pole, 110 V AC coil device rated for operation within the specified voltage and current ranges according to IEC standards. It contains one auxiliary normally open contact (1NO) and three main contacts rated for specified electrical parameters, with non-reversing operation and spring-type terminals. The unit is part of the SIRIUS 3RT20 series with frame size S00 and is compatible with DIN Rail or surface mounting
- IP20 rating indicates ingress protection level.
- Coil Voltage: 110 V AC
- - Poles / Main Contacts: 3 poles
- 3 normally open main contacts
- - Auxiliary Contacts: 1 NO
- - Frame Size / Series: S00
- SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Terminal Connection: Spring Type
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 690 V AC
- - IP Rating: IP20
- - Embedded Surge Suppressor: Does not include an embedded surge suppressor, which may require external protection if necessary
- - Full Load Amps: Inductive 16 A
- Resistive 22 A
- - Mechanical Operating Durability: 30,000,000 cycles
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 16 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.89
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.55
