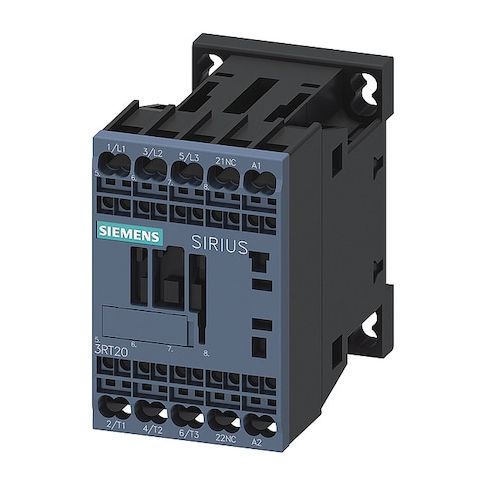

IEC Magnetic Contactor, 1NC, 110V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20182AF02

• The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. This model is a 3-pole, non-reversing contactor with a 110 V AC coil and a single 1NC auxiliary contact, featuring spring-type connections. It belongs to the SIRIUS 3RT20 series with frame size S00.

  - Aux. contact configuration: 1NC (one normally closed auxiliary contact)

• - Coil voltage: 110 V AC
• - Contactor style / frame: IEC
• Series SIRIUS 3RT20
• Frame Size S00
• - Poles / Phase: 3 poles
• Three-phase
• - Reversing capability: Non-reversing (no guarantee of reversing function)
• - Electrical connection: Spring Type
• - IP rating: IP20
• - Mounting style: DIN Rail, Surface
• - Dimensions: Height 70 mm, Width 45 mm, Depth 73 mm
• - Overall dimensions (inches): 3.08 in H x 1.97 in W x 2.92 in D
• - Full Load Amps: Inductive 16 A
• Resistive 22 A
• - Frequency: 50/60 Hz
• - Maximum voltage rating: 690 V AC
• - Embedded surge suppressor: Does not include an integrated surge suppression feature
• - Mechanical operating durability: 30,000,000 cycles
• - Mounting hole diameter: 0.2 in
• Hole spacing (Height) 1.97 in
• Hole spacing (Width) 1.38 in
• - NEMA enclosure rating: No Enclosure
• - Includes auxiliary contacts: Yes
